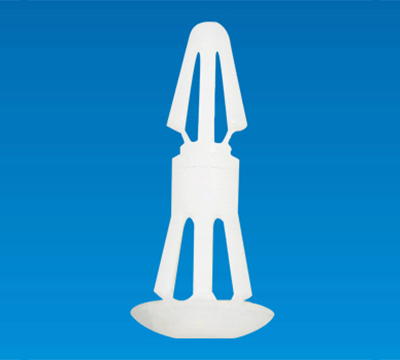

    SPACER SUPPORT SCB-5

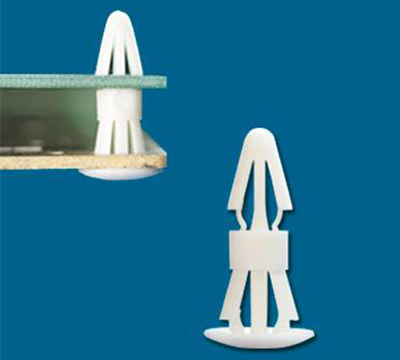

    • Insert from the chassis underside to fit both holes on chassis and circuit board.
    • Provides distance,space and support between Circuit board and chassis.
    • Minimize the protrusion on chassis bottom.
    • Reverse locking circuit board.
    add to cart Inquiry Now
    SPACER SUPPORT SCB-5

    FEATURES
    • Insert from the chassis underside to fit both holes on chassis and circuit board.
    • Provides distance,space and support between Circuit board and chassis.
    • Minimize the protrusion on chassis bottom.
    • Reverse locking circuit board.

    SPECIFICATION
    • MATERIAL: NYLON66 (UL)
    • FLAME CLASS: 94V-2
    • COLOR: NATURAL
    • HOLE IN CHASSIS: Ø5.5

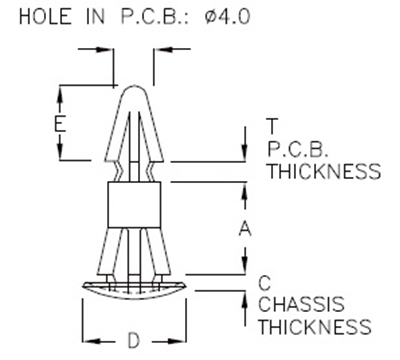

    PART NO A T
    P.C.B
    THICKNESS    		 C
    CHASSIS
    THICKNESS    		 D E PACKAGE
    SCB-5 5.0 1.2~1.6 0.8~1.4 Ø10.0 7.4 1000
    SCB-5.5 5.5 1.2~1.6 0.8~1.7 Ø10.0 7.1 1000
    SCB-6 6.35 1.2~1.6 0.8~1.2 Ø10.0 7.5 1000
    SCB-6A 6.5 1.2~1.8 0.8~1.7 Ø10.0 7.1 1000
    SCB-6F 6.5 1.2~1.6 1.0~1.7 Ø10.0 4.9 1000
    SCB-8 8.0 1.2~1.6 0.8~1.4 Ø9.9 7.1 1000
    SCB-8A 8.0 1.2~1.6 0.8~1.1 Ø10.1 7.4 1000
    SCB-9A 9.0 1.2~1.8 0.8~1.4 Ø10.0 7.3 1000
    SCB-10 10.0 1.2~1.6 0.8~1.2 Ø10.0 7.6 1000
    SCB-10A 10.0 1.5~2.4 1.0~1.4 Ø10.0 7.1 1000
    SCB-11F 11.0 1.2~1.6 0.8~1.2 Ø9.9 7.3 1000
    SCB-12 12.4 1.2~1.6 0.8~1.4 Ø9.9 7.2 1000
    SCB-15 15.6 1.2~1.6 0.8~1.4 Ø9.8 7.3 1000
    SCB-16 16.2 1.2~1.6 0.7~1.2 Ø9.8 6.6 500
    SCB-19 19.0 1.2~1.6 0.8~1.4 Ø9.9 7.5 500
    SCB-242 4.0 1.2~1.6 0.8~1.4 Ø9.8 7.5 500
    SCB-28A2 8.3 1.4~1.8 0.8~1.0 Ø10.0 6.4 500
