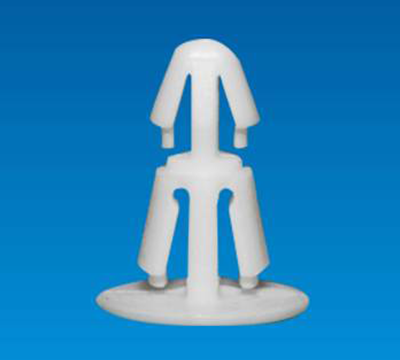

SPACER SUPPORT SCG-2A

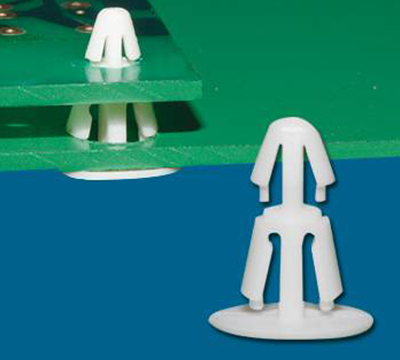

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCG-2A
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø4.0

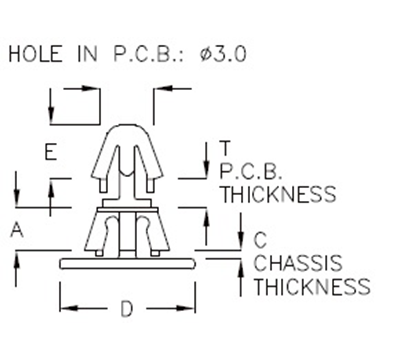

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCG-2A | 2.5 | 1.6 | 0.5 | Ø8.0 | 3.2 | 2000 |
| SCG-3D | 3.8 | 1.6 | 0.8 | Ø8.0 | 3.2 | 2000 |
| SCG-05 | 5.0 | 1.6 | 0.5 | Ø8.0 | 3.2 | 2000 |
