Components & Accessories

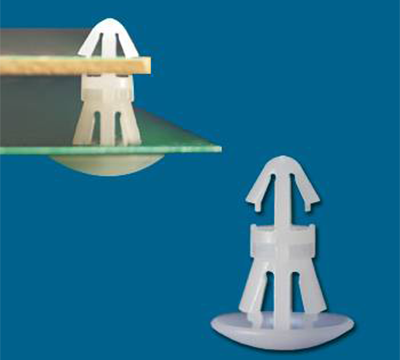

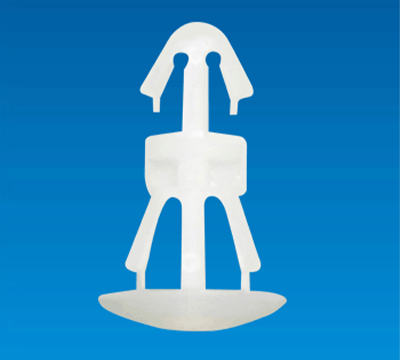

SPACER SUPPORT SCT-7AF
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCT-7AF
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

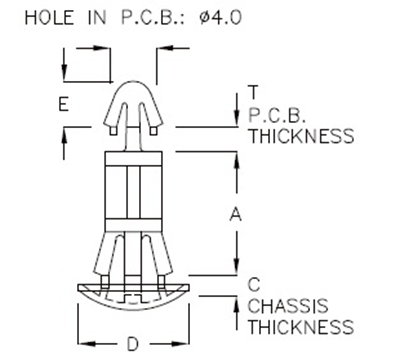

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCT-7AF | 7.0 | 1.2~1.6 | 1.2 | Ø11.1 | 3.8 | 1000 |
