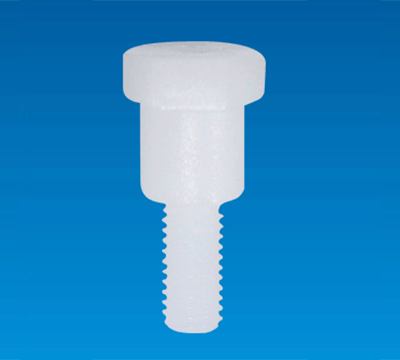

SPACER SUPPORT SQ-10A

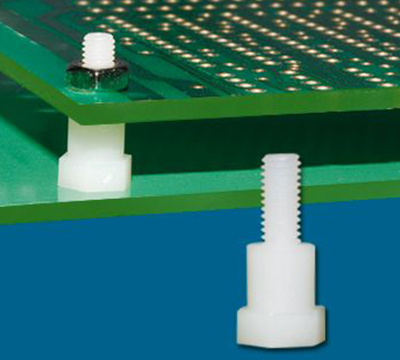

- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Use with Tapping screw to increase the power of holding PCB.
SPACER SUPPORT SQ-10A
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Use with Tapping screw to increase the power of holding PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- SCREW: M2.5 TAPPING SCREW

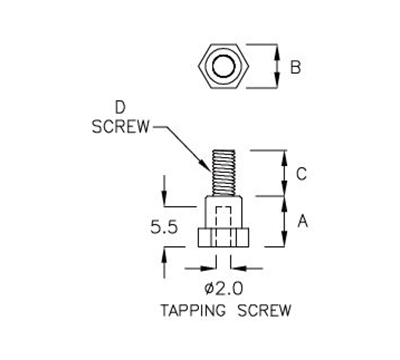

| PART NO | A | B | C | D | PACKAGE |
|---|---|---|---|---|---|
| SQ-10A | 7.0 | 6.0 | 6.3 | M3 | 1000 |
