SPACER SUPPORT TAA-07
- Snap fit to joint PCBs or joint with chassis.
- Twin snap pins design,uses with tapping screw.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPACER SUPPORT TAA-07
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs or joint with chassis.
- Twin snap pins design,uses with tapping screw.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

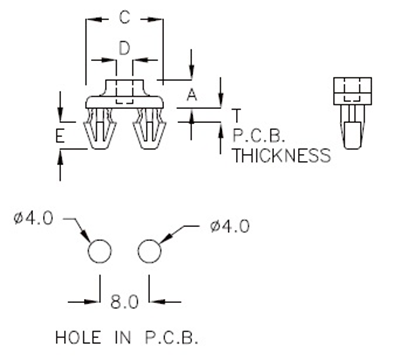

| PART NO | A | T P.C.B THICKNESS |
C | D TAPPING SCREW |
E | PACKAGE |
|---|---|---|---|---|---|---|
| TAA-07 | 4.5 | 2.0 | 12.5 | M3x4 | 4.3 | 500 |
TAA-4A |
8.5 | 1.6 | 12.5 | M3x6 | 4.5 | 500 |
