Components & Accessories

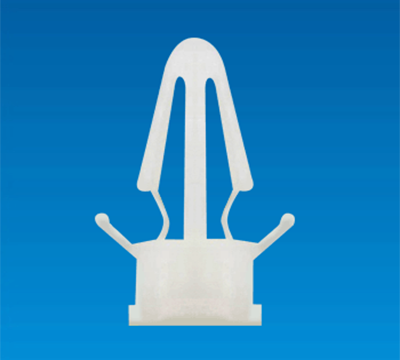

SPACER SUPPORT TCA-14

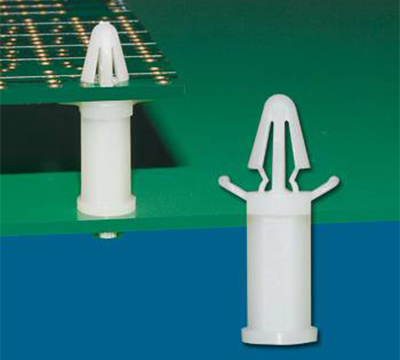

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Tapping Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT TCA-14
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Tapping Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

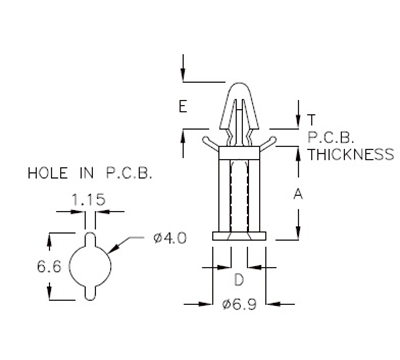

| PART NO | A | T P.C.B THICKNESS |
SCREW & THICKNESS D TAPPING SCREW |
SCREW & THICKNESS SUITABLE THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|---|
| TCA-14 | 14.0 | 1.1~1.7 | M3x10 | 1.0 | 7.0 | 500 |
