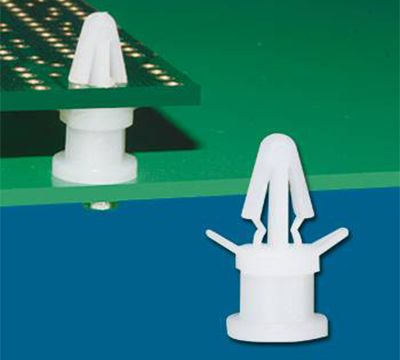

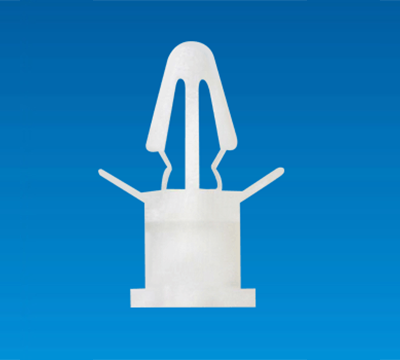

SPACER SUPPORT TCBS-5
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Tapping Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT TCA-3K
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Tapping Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

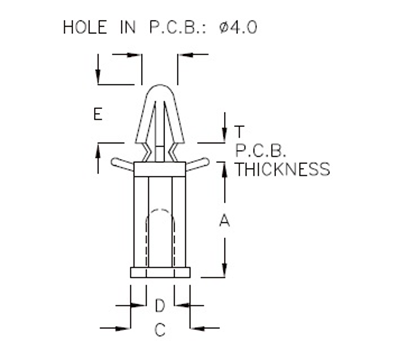

| PART NO | A | T P.C.B THICKNESS |
C | SCREW & THICKNESS | E | PACKAGE | |
| D TAPPING SCREW |
SUITABLE THICKNESS |
||||||
| TCBS-5 | 5.0 | 1.2~1.9 | Ø6.9 | M3x4.5 | 1.0 | 7.1 | 1000 |
| TCBS-5A | 5.5 | 1.2~1.9 | Ø6.9 | M3x4.5 | 1.0 | 7.1 | |
| TCBS-6 | 6.35 | 1.2~1.9 | Ø8.0 | M3x5 | 1.0 | 6.8 | |
| TCBS-7 | 7.0 | 1.2~1.9 | Ø7.8 | M3x6 | 1.0 | 6.8 | |
| TCBS-10 | 10.0 | 1.2~1.9 | Ø6.9 | M3x6 | 1.0 | 7.1 | |
| TCBS-12K | 12.5 | 1.2~1.9 | Ø6.9 | M3x8 | 1.0 | 6.8 | |
| TCBS-15 | 15.0 | 1.2~1.9 | Ø6.9 | M3x10 | 1.0 | 7.1 | |
| TCBS-18 | 18.0 | 1.2~1.9 | Ø6.9 | M3x10 | 1.0 | 6.8 | |
| TCBS-20 | 20.0 | 1.2~1.9 | Ø6.8 | M3x10 | 1.0 | 7.1 | |
| TCBS-25 | 25.0 | 1.2~1.9 | Ø6.9 | M3x10 | 1.0 | 7.1 | |
| TCBS-27A | 27.4 | 1.2~1.9 | Ø6.9 | M3x10 | 1.0 | 6.8 | 500 |
| TCBS-29 | 29.3 | 1.2~1.9 | Ø6.9 | M3x10 | 1.0 | 6.8 | |
| TCBS-30 | 30.0 | 1.2~1.9 | Ø6.9 | M3x10 | 1.0 | 7.1 | |
| TCBS-35 | 35.0 | 1.2~1.9 | Ø6.9 | M3x10 | 1.0 | 7.1 | |
| TCBS-38 | 38.0 | 1.2~1.9 | Ø6.9 | M3x10 | 1.0 | 7.1 | |
| TCBS-40 | 40.0 | 1.2~1.9 | Ø7.0 | M3x10 | 1.0 | 7.1 | |
| TCBS-49 | 49.0 | 1.2~1.9 | Ø8.1 | M3x10 | 1.0 | 6.6 | 200 |
