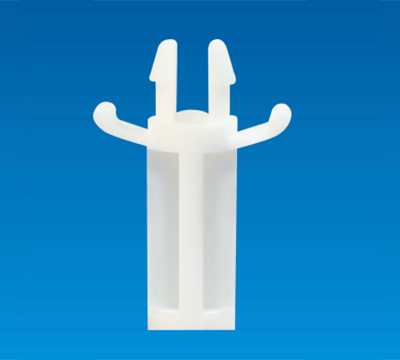

SPACER SUPPORT TCJ-11

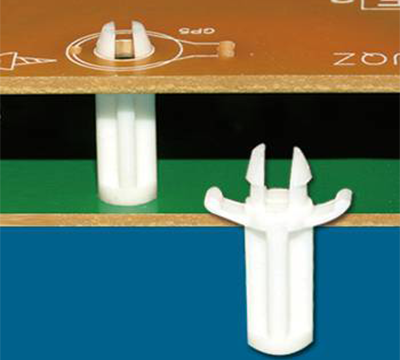

- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT TCJ-11
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

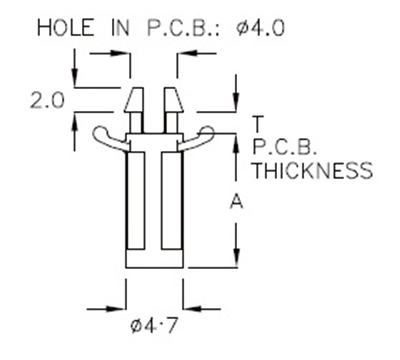

| PART NO | A | T P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|
| TCJ-11 | 11.0 | 1.2~1.6 | 1000 |
| TCJ-12A | 12.2 | 1.2~1.6 | 1000 |
| TCJ-15 | 15.0 | 1.2~1.6 | 1000 |
| TCJ-18 | 18.0 | 1.2~1.6 | 1000 |
