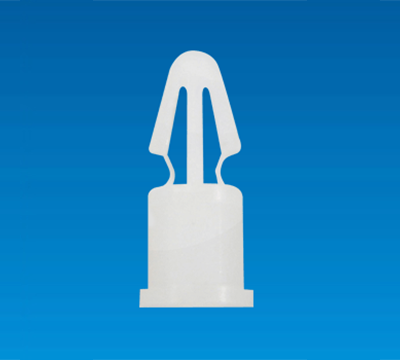

    SPACER SUPPORT TCL-07

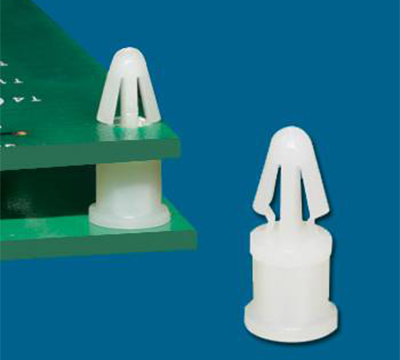

    • Joint Circuit board with Chassis.
    • Provides distance, space and support between Circuit board and chassis.
    • Tapping Screw Mount design, offer extremely strength to fix circuit board on chassis.
    SPACER SUPPORT TCL-07

    FEATURES
    • Joint Circuit board with Chassis.
    • Provides distance, space and support between Circuit board and chassis.
    • Tapping Screw Mount design, offer extremely strength to fix circuit board on chassis.

    SPECIFICATION
    • MATERIAL: NYLON66 (UL)
    • FLAME CLASS: 94V-2
    • COLOR: NATURAL

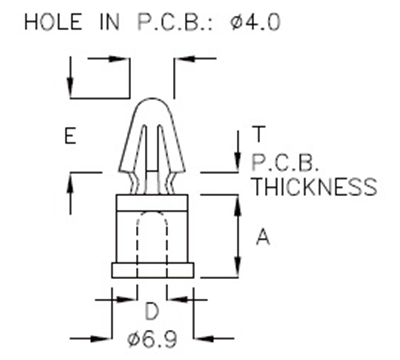

    spacer-support-tcl-07-2


    PART NO A T
    P.C.B
    THICKNESS
    SCREW & THICKNESS E PACKAGE
    D TAPPING
    SCREW
    SUITABLE
    THICKNESS
    TCL-07 7.0 1.2~1.7 M3x7 1.0 6.2 1000
