Components & Accessories

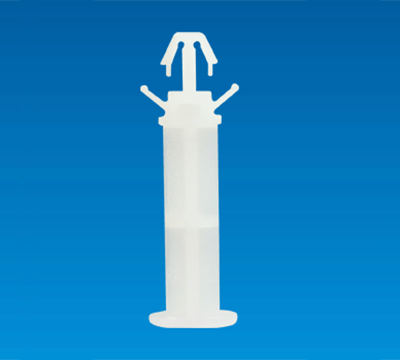

SPACER SUPPORT TCX-12

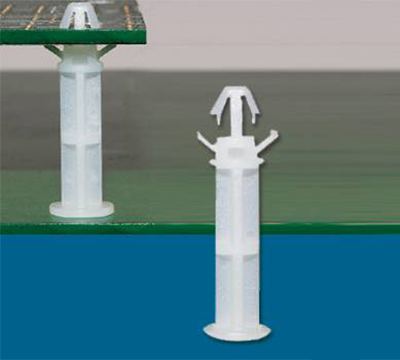

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPACER SUPPORT TCX-12
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

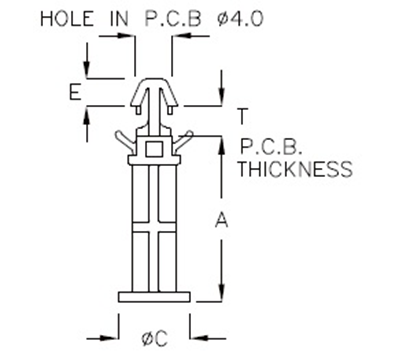

| PART NO | A | T P.C.B THICKNESS |
C | E | PACKAGE |
|---|---|---|---|---|---|
| TCX-12 | 12.0 | 1.6~2.0 | Ø4.7 | 3.0 | 1000 |
| TCX-19H | 19.6 | 2.6~3.0 | Ø8.0 | 3.0 | 1000 |
| TCX-21 | 21.0 | 1.4~1.8 | Ø8.0 | 3.0 | 500 |
