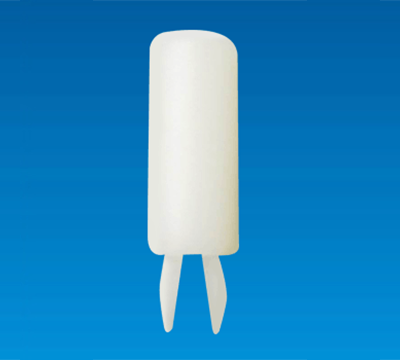

SPACER SUPPORT TSA-16

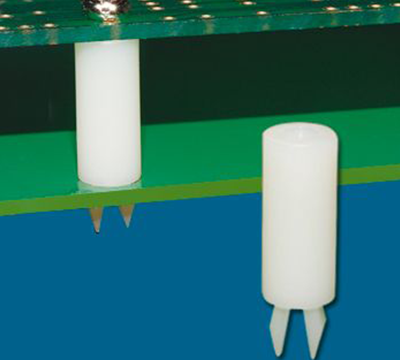

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- M3x22mm Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT TSA-16
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- M3x22mm Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- USE STANDARD TAPPING SCREW: TAPPING SCREW M3 x 22mm
- COLOR: NATURAL

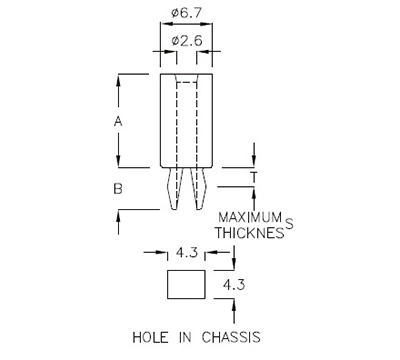

| PART NO | A | B | T MAXMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|
| TSA-16 | 15.9 | 5.5 | 1.6 | 200 |
