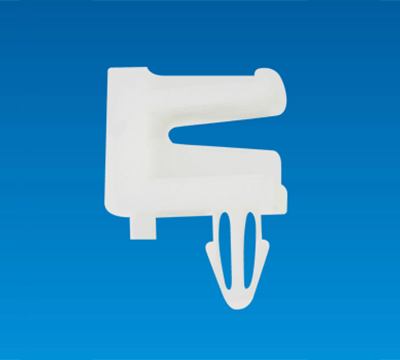

SPACER SUPPORT UB-06H
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.

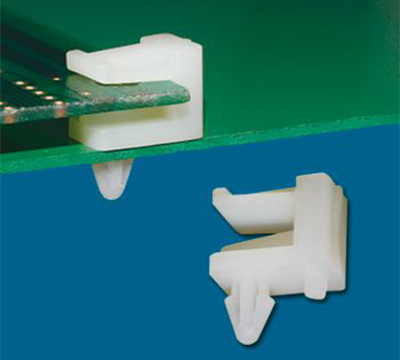

- Slide installation, no need for a mounting hole on top PCB.
SPACER SUPPORT UB-06H
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

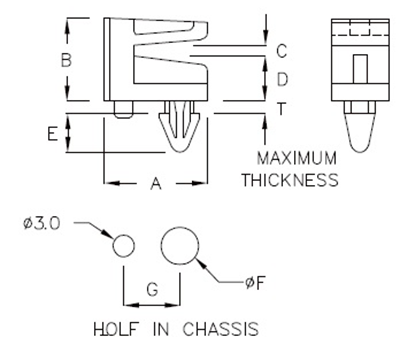

PART NO
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
T
MAXIMUM
THICKNESS
|
PACKAGE
|
|---|---|---|---|---|---|---|---|---|---|
|
UB-06H
|
21.5
|
11.8
|
1.3
|
6.6
|
6.0
|
Ø4.4
|
8.0
|
1.6
|
500
|
|
UB-6T
|
14.8
|
11.9
|
1.3
|
6.6
|
5.9
|
Ø4.4
|
8.0
|
1.7
|
|
|
UB-06U
|
12.0
|
11.8
|
1.3
|
6.6
|
6.0
|
Ø4.4
|
6.5
|
1.8
|
|
|
UB-08U
|
12.0
|
14.0
|
2.0
|
8.5
|
7.0
|
Ø4.4
|
6.5
|
0.8
|
|
|
UB-14T
|
15.0
|
19.2
|
1.3
|
14.0
|
5.9
|
Ø4.4
|
8.0
|
1.8
|
|
|
UB-18T
|
15.5
|
23.6
|
1.6
|
18.2
|
6.0
|
Ø5.0
|
8.5
|
1.8
|
200
|
