Components & Accessories

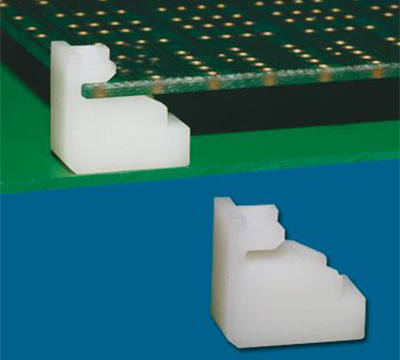

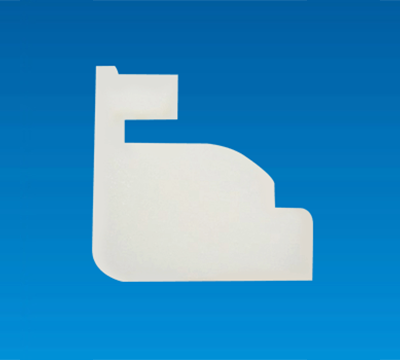

SPACER SUPPORT UB-09K
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPACER SUPPORT UB-09K
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- SCREW: TAPPING SCREW M3

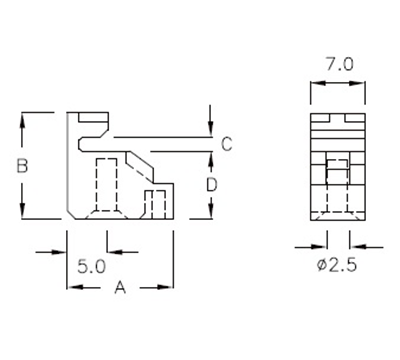

| PART NO | A | B | C | D | PACKAGE |
|---|---|---|---|---|---|
| UB-09K | 13.5 | 13.6 | 1.8 | 8.6 | 500 |
