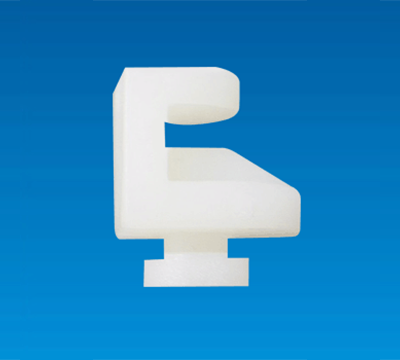

SPACER SUPPORT UB-6A

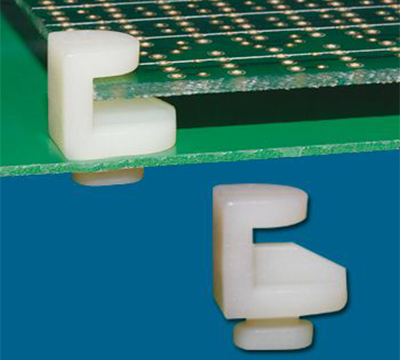

- Joint PCB with Chassis.
- Provides distance,space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPACER SUPPORT UB-6A
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance,space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

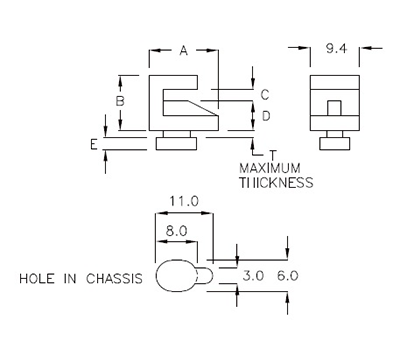

| PART NO | A | B | C | D | E | T P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|
| UB-6A | 12.5 | 10.7 | 1.9 | 5.9 | 2.6 | 1.2 | 500 |
| UB-6D | 12.3 | 11.5 | 2.3 | 6.4 | 2.5 | 1.2 | 500 |
