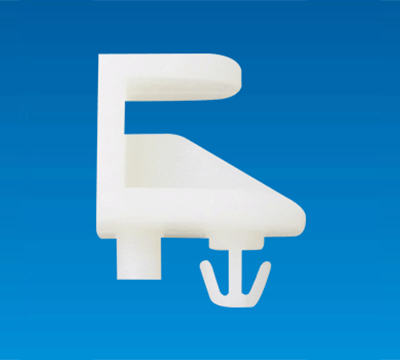

SPACER SUPPORT UB-6E
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.

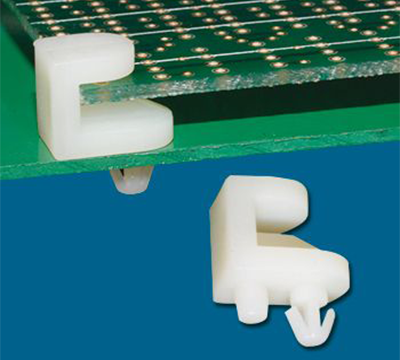

- Slide installation, no need for a mounting hole on top PCB.
SPACER SUPPORT UB-6E
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

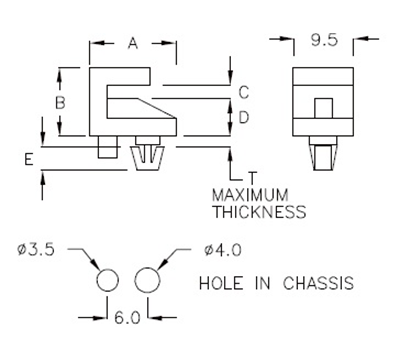

| PART NO | A | B | C | D | E | T MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|
| UB-6E | 13.5 | 10.8 | 2.2 | 6.4 | 3.5 | 1.3 | 500 |
| UB-6K | 13.4 | 10.8 | 2.1 | 6.0 | 3.7 | 2.1 | 500 |
