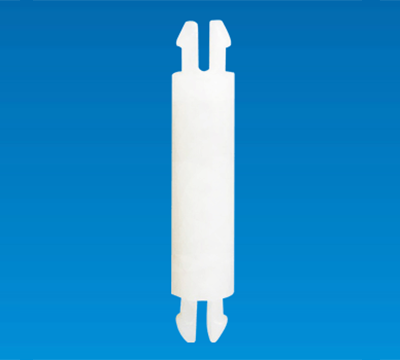

SPACER SUPPORT UCD-10A

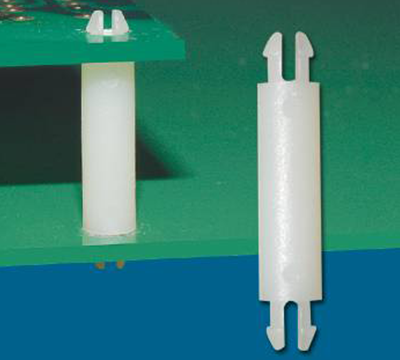

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- Releasable mount end design.
SPACER SUPPORT UCD-10A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- Releasable mount end design.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

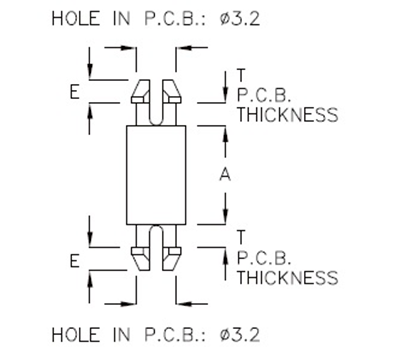

| PART NO | A | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| UCD-10A | 10.1 | 1.4~1.6 | 1.9 | 2000 |
| UCD-11A | 11.1 | 1.4~1.6 | 1.9 | 2000 |
| UCD-16A | 15.9 | 1.4~1.6 | 1.9 | 1000 |
