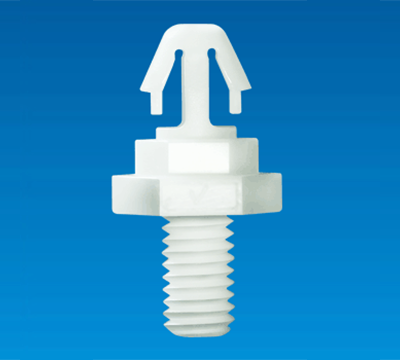

SPACER SUPPORT WITH THREAD SDC-3TH

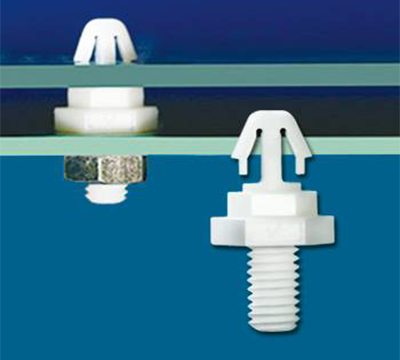

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
- Tension wing design, provide a tight fit.
SPACER SUPPORT WITH THREAD SDC-3TH
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
- Tension wing design, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

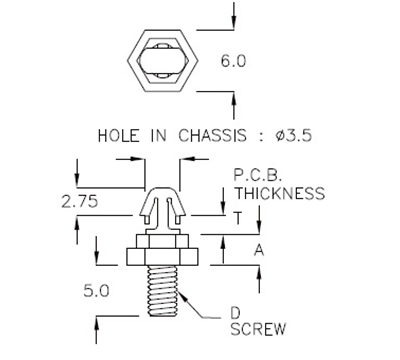

| PART NO | A | T CHASSIS THICKNESS |
D | PACKAGE |
|---|---|---|---|---|
| SDC-3TH | 3.0 | 1.2~1.6 | M3 | 2000 |
