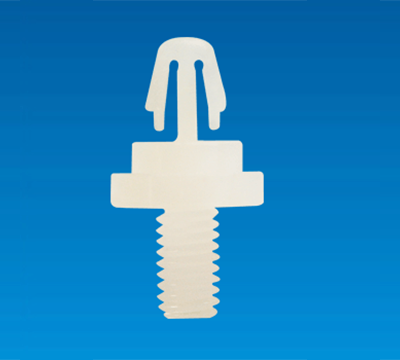

SPACER SUPPORT WITH THREAD SDM-03

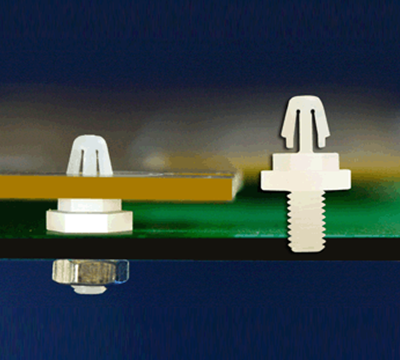

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT WITH THREAD SDM-03
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

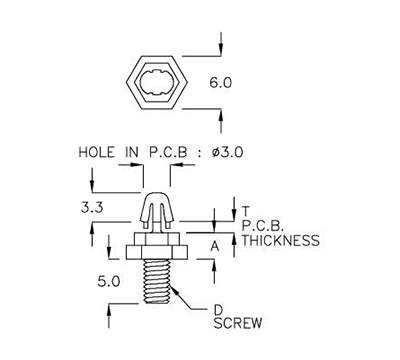

| PART NO | A | T P.C.B THICKNESS |
D | PACKAGE |
|---|---|---|---|---|
| SDM-03 | 3.0 | 0.8~1.0 | M3 | 2000 |
| SDM-04 | 4.0 | 0.8~1.0 | M2.5 | 2000 |
