SPACER SUPPORT WITH THREAD SSBS-6

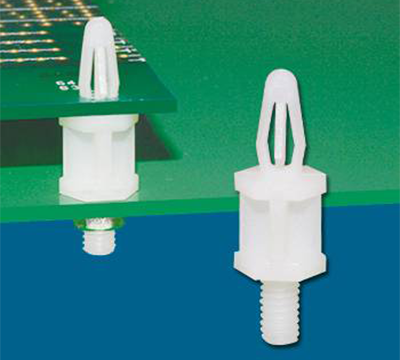

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.

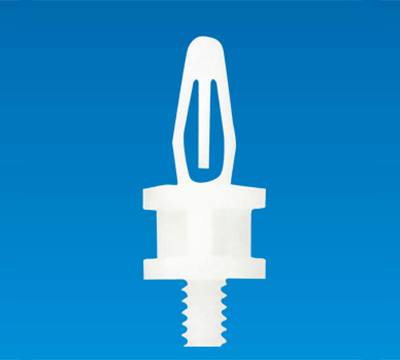

SPACER SUPPORT WITH THREAD SSBS-6
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

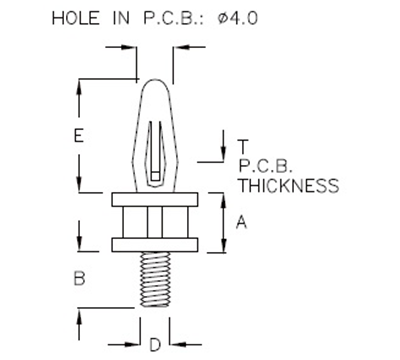

PART NO
|
A
|
B
|
T
P.C.B THICKNESS |
D
SCREW |
E
|
PACKAGE
|
|---|---|---|---|---|---|---|
|
SSBS-6
|
6.2
|
7.6
|
1.0~1.7
|
# 6-32
|
10.6
|
1000
|
|
SSBS-6M
|
6.35
|
5.0
|
1.0~1.7
|
# 6-32
|
10.6
|
|
|
SSBS-10
|
9.6
|
7.5
|
1.0~1.7
|
# 6-32
|
10.6
|
|
|
SSBS-12A
|
12.5
|
5.0
|
1.0~1.7
|
# 6-32
|
10.1
|
500
|
|
SSBS4-6
|
6.3
|
5.0
|
1.0~1.7
|
M4
|
10.6
|
|
|
SSBS4-10
|
10.0
|
7.4
|
1.0~1.7
|
M4
|
10.6
|
|
|
SSBS4-16
|
15.8
|
7.4
|
1.0~1.7
|
M4
|
10.6
|
