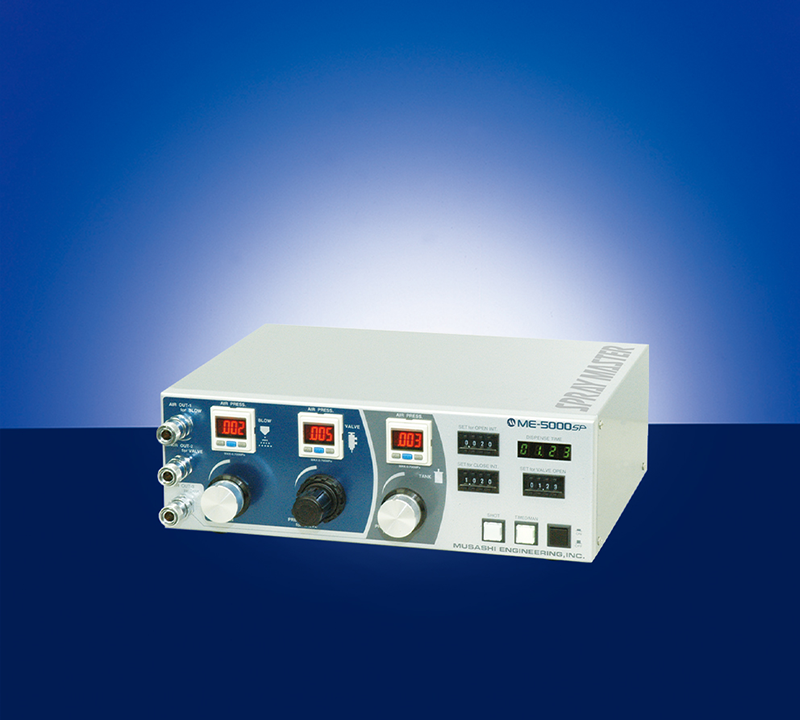

Spray valve controller Musashi ME-5000SP
Two-fluid spray valve controller with high-precision digital control
- Improved pressure stability eliminates dispensing volume fluctuation.
- Digital control enables user-friendly operability and high repeatability.
- Dispensing conditions centrally controllable by the controller.
- Dispensing monitorable by improved external interface, perfectly suited to mount on other equipment
- CE Marking certified, EU RoHS compliant.
| Model | ME-5000SP | |
| Control system | Electro/pneumatic method | |
| Pressure setting range | Fluid feed pressure | 0.010 to 0.700 MPa |
| Valve actuation pressure | 0.200 to 0.700 MPa | |
| Blow pressure | 0.010 to 0.700 MPa | |
| Time setting range of fluid valve opening | 0.01 to 99.99 s 0.010 to 9.999 s 0.1 to 999.9 s |
|
| Blow time setting range | Before valve actuation | Dispensing, dispensing mode switching |
| After valve actuation | Dispensing completion, in-dispensing, pressurizing, low fluid feed pressure, low valve actuation pressure, low blow pressure, dispensing mode, power on | |
| Rated power supply and frequency | AC100-240 V 50/60 Hz | |
| Power consumption | 32 W | |
| External dimensions | W340×D245×H121 mm | |
| Weight | 5.8 kg | |
