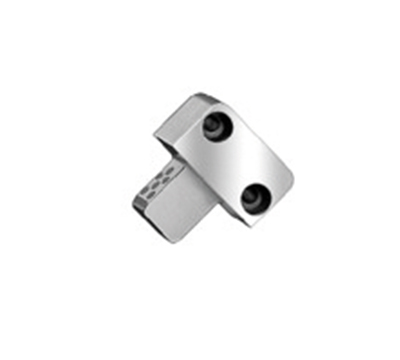

Square guide bar, self-lubricating
- Hasco Z07/l2xb2xl1
- max. 200°C
- 580 HV 30
- 1.7131

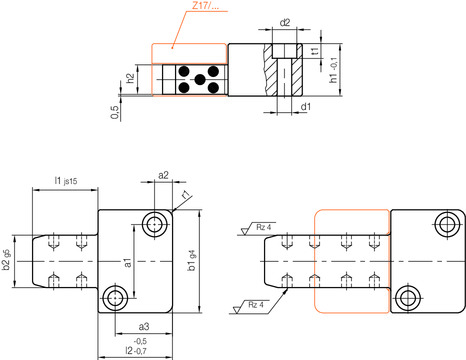

Square guide bar, self-lubricating
| r1 | h2 | h1 | t1 | b1 | a3 | a2 | a1 | d2 | d1 | l2 | b2 | l1 | Product |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 11 | 20 | 6,9 | 40 | 15 | 7 | 26 | 11 | 6,6 | 22 | 16 | 20 |
Z07/22x16x20
|
| 6 | 11 | 20 | 6,9 | 40 | 15 | 7 | 26 | 11 | 6,6 | 22 | 16 | 40 |
Z07/22x16x40
|
| 6 | 13 | 22 | 6,9 | 45 | 19 | 7 | 31 | 11 | 6,6 | 27 | 20 | 25 |
Z07/27x20x25
|
| 6 | 13 | 22 | 6,9 | 45 | 19 | 7 | 31 | 11 | 6,6 | 27 | 20 | 50 |
Z07/27x20x50
|
| 8 | 14 | 25 | 6,9 | 50 | 27 | 9 | 35 | 11 | 6,6 | 36 | 25 | 32 |
Z07/36x25x32
|
| 8 | 14 | 25 | 6,9 | 50 | 27 | 9 | 35 | 11 | 6,6 | 36 | 25 | 63 |
Z07/36x25x63
|
| 8 | 19 | 32 | 9 | 63 | 35 | 11 | 45 | 15 | 9 | 46 | 32 | 40 |
Z07/46x32x40
|
| 8 | 19 | 32 | 9 | 63 | 35 | 11 | 45 | 15 | 9 | 46 | 32 | 80 |
Z07/46x32x80
|
| 10 | 22 | 36 | 11 | 85 | 40 | 15 | 60 | 18 | 11 | 56 | 40 | 50 |
Z07/56x40x50
|
| 10 | 22 | 36 | 11 | 85 | 40 | 15 | 60 | 18 | 11 | 56 | 40 | 100 |
Z07/56x40x100
|
