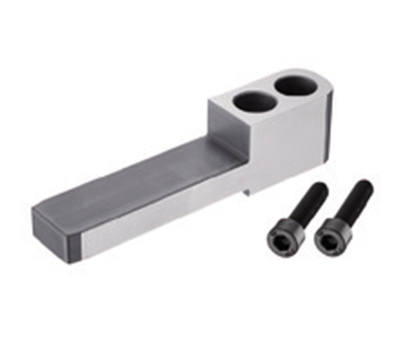

Square guide bar

Hasco Z0731/b1xl1
60 HRC
1.2379

add to cart Inquiry Now

Square guide bar

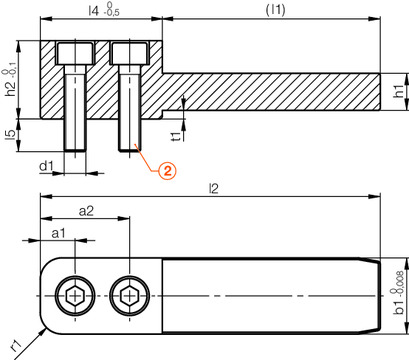

Pos2	n2	r2	r1	a2	a1	t1	h2	h1	l5	l4	l3	l2	d1	b1	l1	Product
Z31/6x25	2	1	4	20	7	3	22	9	9,8	27	4	52	M6	12	25	Z0731/12x25
Z31/6x25	2	1	4	20	7	3	22	9	9,8	27	4	77	M6	12	50	Z0731/12x50
Z31/6x30	2	1	6	26	10	3,5	25	9	11,8	36	5	68	M6	17	32	Z0731/17x32
Z31/6x30	2	1	6	26	10	3,5	25	9	11,8	36	5	99	M6	17	63	Z0731/17x63
Z31/8x35	2	1,5	8	33	13	4	32	13	12	46	6	86	M8	25	40	Z0731/25x40
Z31/8x35	2	1,5	8	33	13	4	32	13	12	46	6	126	M8	25	80	Z0731/25x80
Z31/10x40	2	1,5	10	41	16	4	36	17	15	56	7	106	M10	35	50	Z0731/35x50
Z31/10x40	2	1,5	10	41	16	4	36	17	15	56	7	156	M10	35	100	Z0731/35x100
Z31/12x45	2	1,5	10	48	19	4,5	40	17	18	66	7	122	M12	45	56	Z0731/45x56
Z31/12x45	2	1,5	10	48	19	4,5	40	17	18	66	7	178	M12	45	112	Z0731/45x112

The HASCO linear needle guide unit Z073/... sets completely new standards in precision and rolling friction. Thanks to the very tight fitting tolerance of the circulating needles, it reliably guides and centres injection moulding units and die-casting moulds. As well as sub-assembly Z073/..., the square centering guide Z0731/... and the linear needle guide unit Z0732/... are also available separately.

High-precision, flat guiding of injection moulding tools
System operates virtually free of play through very tight fitting tolerance
Circulating needles enable unlimited stroke
Large contact surface of the needles
Specifically for stripper plates
Low wear through rolling friction
Max. service temperature 200°C
Recommended high-performance lubricating spray Z261/...
Fixing material is included
