Mold Parts

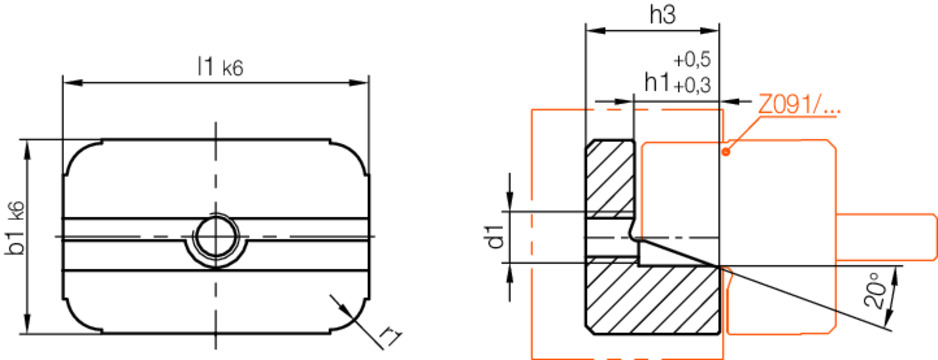

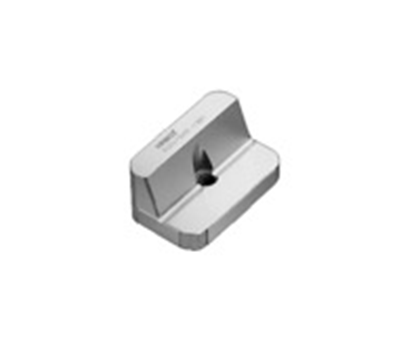

Square interlock, female
| r1 | h3 | d1 | b1 | l1 | h1 | Product |
|---|---|---|---|---|---|---|
| 4 | 16 | M5 | 20 | 20 | 10 |
Z093/20x20x10
|
| 4 | 16 | M5 | 20 | 40 | 10 |
Z093/20x40x10
|
| 5 | 19 | M6 | 25 | 25 | 12 |
Z093/25x25x12
|
| 5 | 19 | M6 | 25 | 40 | 12 |
Z093/25x40x12
|
| 6 | 25 | M8 | 32 | 32 | 16 |
Z093/32x32x16
|
| 6 | 25 | M8 | 32 | 50 | 16 |
Z093/32x50x16
|
