Mold Parts

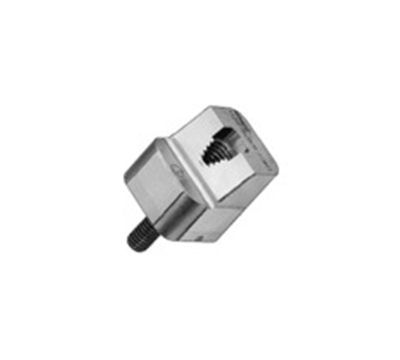

Square interlock, male

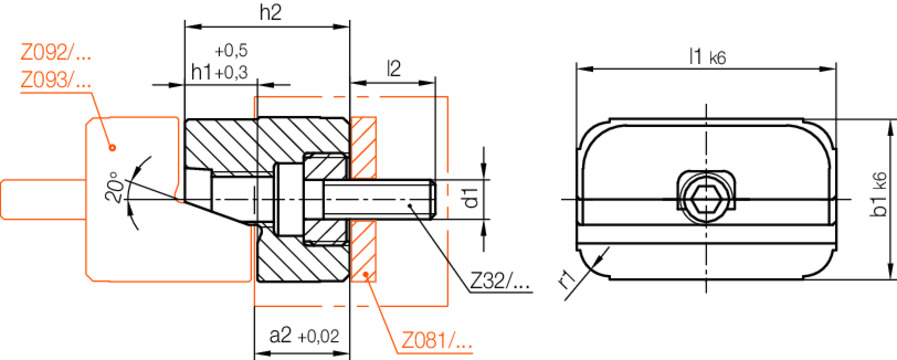

| r1 | h2 | a2 | l2 | d1 | b1 | l1 | h1 | Product |
|---|---|---|---|---|---|---|---|---|
| 4 | 22 | 12 | 12 | M5 | 20 | 20 | 10 |
Z091/20x20x10
|
| 4 | 22 | 12 | 12 | M5 | 20 | 40 | 10 |
Z091/20x40x10
|
| 5 | 26 | 14 | 13 | M6 | 25 | 25 | 12 |
Z091/25x25x12
|
| 5 | 26 | 14 | 13 | M6 | 25 | 40 | 12 |
Z091/25x40x12
|
| 6 | 34 | 18 | 15 | M8 | 32 | 32 | 16 |
Z091/32x32x16
|
| 6 | 34 | 18 | 15 | M8 | 32 | 50 | 16 |
Z091/32x50x16
|
