Sensor
|
Model |

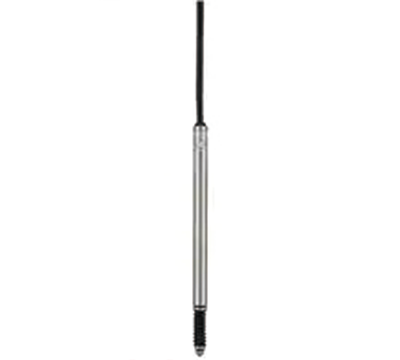

GT2-P12*1 |
|||
|
Detection system |
Scale Shot System II, absolute (no tracking errors) type |
|||
|
Measuring range |
12 mm 0.47" |
|||
|
Resolution |
0.5 μm 0.02 Mil |
|||
|
Indicated accuracy |
2 µm 0.08 Mil (p-p)*2 |
|||
|
Measuring force |
Downward mounting |
1.0 N*3 |
||
|
Side mounting |
0.95 N*3 |
|||
|
Upward mounting |
0.9 N*3 |
|||
|
Sampling cycle |
4 ms |
|||
|
Mechanical response |
10 Hz*2 |
|||
|
Operation indicator light |
2-color LED (red, green) |
|||
|
Environmental resistance |
Enclosure rating |
IP67G (JIS)*4, IP67 (IEC), NEMA Type 13*4 |
||
|
Ambient temperature |
-10 to +55 °C 14 to 131 °F (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Shock resistance |
1,000 m/s2 (IEC60068-2-27) |
|||
|
Materials |
Main body |
Main body case: SUS 303, Status indicator: PET, Sensor head-relay connector cable: PUR, Relay connector: PBT |
||
|
Dust boot |
NBR |
|||
|
Contact |
SUS304, SUS440C*5 |
|||
|
Sensor head cable |
Optional (connect to relay connector) |
|||
|
Weight |
Approx. 35 g (excluding cable)*6 |
|||
|
*1 Note: You may not be able to connect the sensor head to the amplifier unit depending on when the amplifier unit was purchased. For details, contact your local sales office. |
||||
