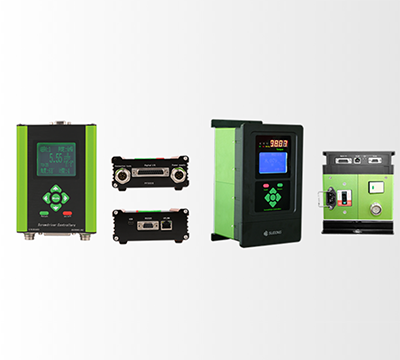

Intelligent Brushless Servo Electric Screwdriver Controller
- The PF50 series controller fully controls the entire tightening process,
- Significantly improve product quality and optimize the tightening process,
- It can automatically identify tightening faults such as floating locks, sliding teeth, poor torque, and poor angles.
Intelligent Brushless Servo Electric Screwdriver Controller
Features
The PF50 series controller fully controls the entire tightening process, greatly improves product quality and optimizes the tightening process, and can automatically identify tightening faults such as floating locks, sliding teeth, poor torque, and poor angles. Store the data of the entire tightening process to generate a curve table, provide important information related to the tightening process, and improve the assembly process.
It can be integrated with all systems through any communication port, and access to the production management system and Ethernet breaks geographical restrictions and realizes remote monitoring of the tightening process. The barcode scanner is connected to the controller to ensure data traceability, prevent the operator from tightening errors that may exist, and can be connected with the production management system without barriers to fully monitor the production process.
According to different tightening requirements, multiple tightening data can be set at the same time to minimize assembly time. Different tightening modes can shorten the cycle time while ensuring high quality. Create a unique operation sequence for the product to achieve barrier-free assembly.
Technical parameter
Physical dimension
Main function of controller
Features
The PF50 series controller fully controls the entire tightening process, greatly improves product quality and optimizes the tightening process, and can automatically identify tightening faults such as floating locks, sliding teeth, poor torque, and poor angles. Store the data of the entire tightening process to generate a curve table, provide important information related to the tightening process, and improve the assembly process.
It can be integrated with all systems through any communication port, and access to the production management system and Ethernet breaks geographical restrictions and realizes remote monitoring of the tightening process. The barcode scanner is connected to the controller to ensure data traceability, prevent the operator from tightening errors that may exist, and can be connected with the production management system without barriers to fully monitor the production process.
According to different tightening requirements, multiple tightening data can be set at the same time to minimize assembly time. Different tightening modes can shorten the cycle time while ensuring high quality. Create a unique operation sequence for the product to achieve barrier-free assembly.
Technical parameter
Physical dimension
Main function of controller
| Tightening elements | Error prompt | Communication connection | Other |
| Counting Multi steps tightening Group cycle Memory group Tightening result determination Torque and angle control Final tightening torque control |
Floating lock warning Screw slippery warning Tightening angle warning Tightening torque warning |
Configurable digitall/O digital 1/0 (input/output) Development agreement Connection with data acquisition system Bar code scanner connection |
Fast programming Password protection |
| technical parameter | Model | Input voltage | Weight(g) | Dimension(mm) |
| SD-PF5030-5P-A SD-PF5030-5P-S |
24V-48V | 650 | 150X110X50 |
