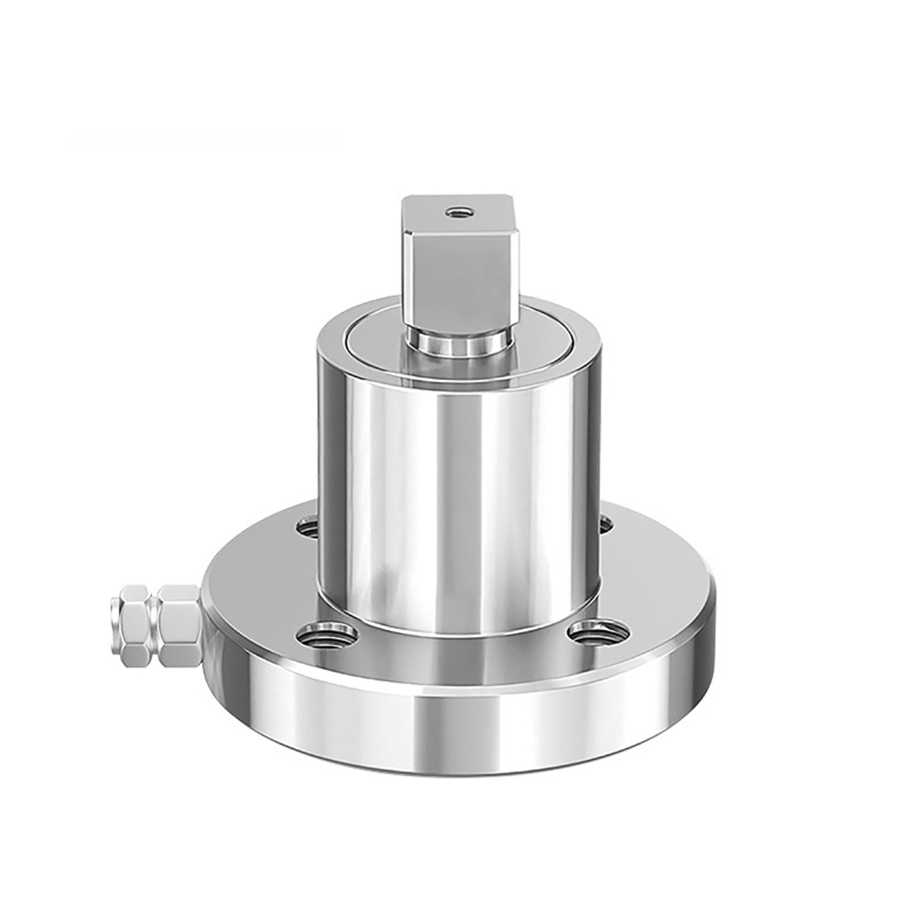

SUDONG Split Type Torque Sensor
Features: high precision, strong interference, good stability, high temperature resistance, and easy installation
| Model | Impedance | Insulation impedance | Working temperature range | Allow overload | Comprehensive accuracy | Size |
| SD-TS1 SD-TS100 SD-TS2 SD-TS200 SD-TS3 SD-TS300 SD-TS5 SD-TS500 SD-TS10 SD-TS1000 SD-TS20 SD-TS1500 SD-TS30 SD-TS2000 SD-TS50 SD-TS3000 |
725+25Ω | ≥5000MΩ | -20~+70℃ | 150%F·S | 1%F·S | Φ59×51mm |

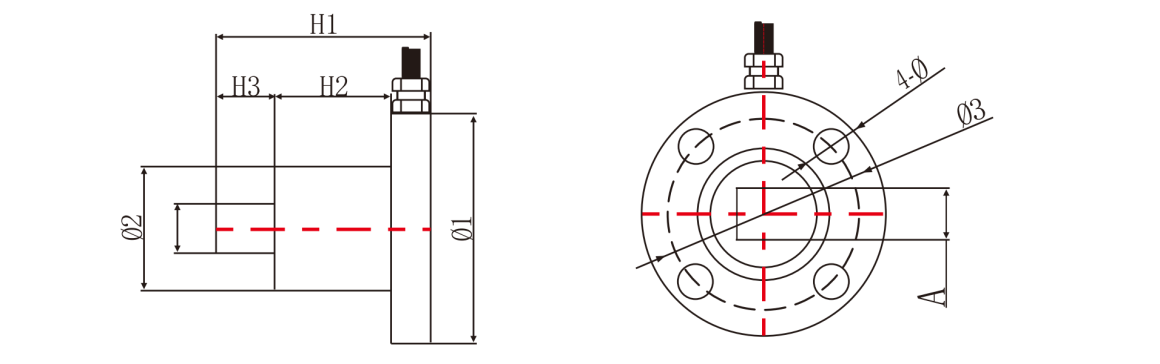

| range | A（A×A） | H1 | H2 | H3 | Φ1 | Φ2 | Φ3 | 4-Φ |
| 1-200 | 12.5 | 55 | 30 | 15 | 59 | 32 | 45 | 6 |
| 300-1000 | 25.4 | 75 | 40 | 24 | 68 | 40 | 55 | 8.5 |
| 1500-3000 | 25.4 | 85 | 44 | 24 | 98 | 56 | 80 | 13 |
