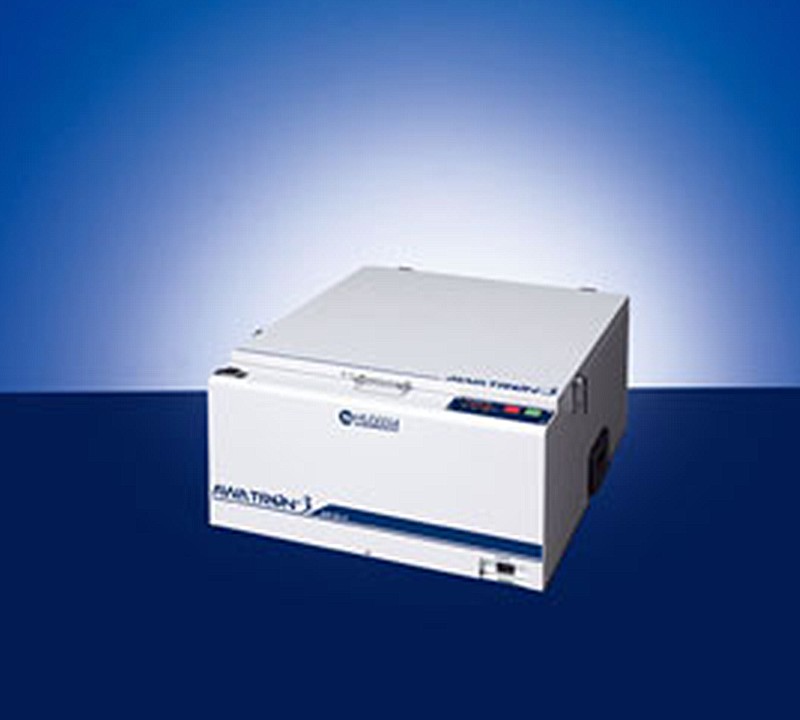

Syringe centrifugal degasser Musashi Awatron3 AW

Further user friendly, reliable, and speedy bubble elimination!

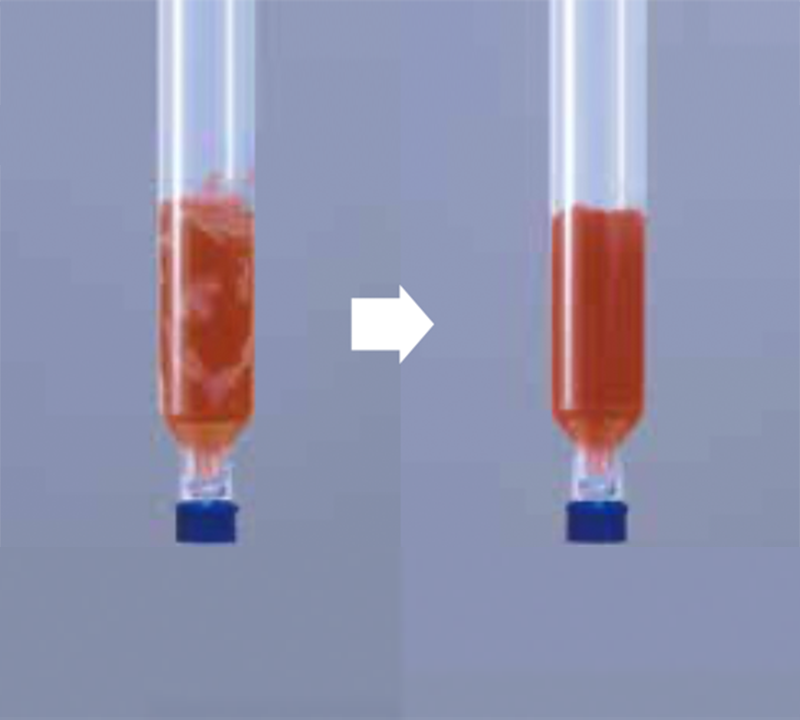

Bubbles are eliminated just by placing a syringe and pressing the switch.
Introduction of a syringe detachable mechanism with stationary holder allows for simple operation and elimination of installation failure.
Introduction of a newly developed syringe tip cap mounting jig has achieved reliable capping. Accordingly it prevents fluid from leaking during bubble elimination.
Introduction of a digital timer allows for detailed setting and control of bubble elimination time.

add to cart Inquiry Now

Specifications

Model	AW-20-3	AW-20-3-220V	AW-50-3	AW-50-3-220V
Timer range	1 to 600 s
Supported syringes mL	1 mL syringe: equipped with 4 syringes
	3 mL syringe: equipped with 4 syringes
	5 mL syringe: equipped with 4 syringes
	10 mL syringe: equipped with 4 syringes
	20 mL syringe: equipped with 4 syringes
	——		30 mL syringe: equipped with 4 syringes
	——		50 mL syringe: equipped with 4 syringes
Power supply	AC100 V 50/60 Hz	AC220 V or AC230 V 50/60 Hz	AC100 V 50/60 Hz	AC220 V or AC230 V 50/60 Hz
Power consumption	165 W		400 W
External dimensions	W320 × D394 × H210 mm		W431 × D509 × H250 mm
Weight	Approx. 15 kg		Approx. 24 kg

Transformer (option)
If AW-20-3 or AW-50-3 is used with the voltage of other than AC100 V, use one of the
following transformers.

Item name		Model
Transformer	[AC110 V ⇒ 100 V]	TR-110
	[AC117 V ⇒ 100 V]	TR-117
	[AC200 V ⇒ 100 V]	TR-200
	[AC220 V ⇒ 100 V]	TR-220
	[AC240 V ⇒ 100 V]	TR-240

Note: 600 watts, 2-pole socket + 1 grounding
If the power supply voltage is AC210 V, use the model TR-220. If the power supply voltage is AC230 V, use the model TR-240.
