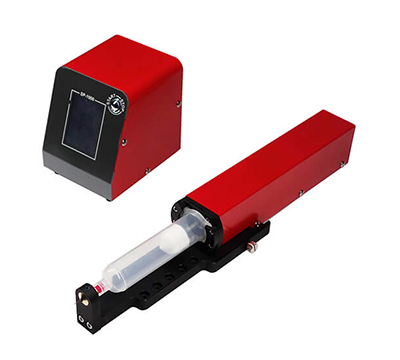

Syringe Pump Dispensing Controller 100SP
Syringe Pump Dispenser, no need air equipments, vacuum function to prevent dripping.
Features
- No air needed: SP-1000 pressurize directly by screw, on need air input.
- High stable dispensing: Accurate dispense and calculation control by micro processor.
- No liquid dripping: Vacuum function to prevent dripping.
- Touch LCD control panel: Operate via control panel, instinctive function and easy to control.
- Easy connect to DT-FN robots.
Specification
| Model | 100SP |
|---|---|
| Max. Pressure | 8 kg |
| Resolution | 0.002 mm |
| Dispense Time | 0.00 ~ 30.00 sec |
| Program | 6 programs |
| Control | Manual / Timer / Cycle |
| Input Voltage | 24 VDC / 0.5 MA |
| Controller Dimention (WxLxH mm) | 91 x 110 x 113 mm; 0.6 kg |
| Pump Dimention (WxLxH mm) | 62 x 51 x 345 mm; 0.9 kg |
