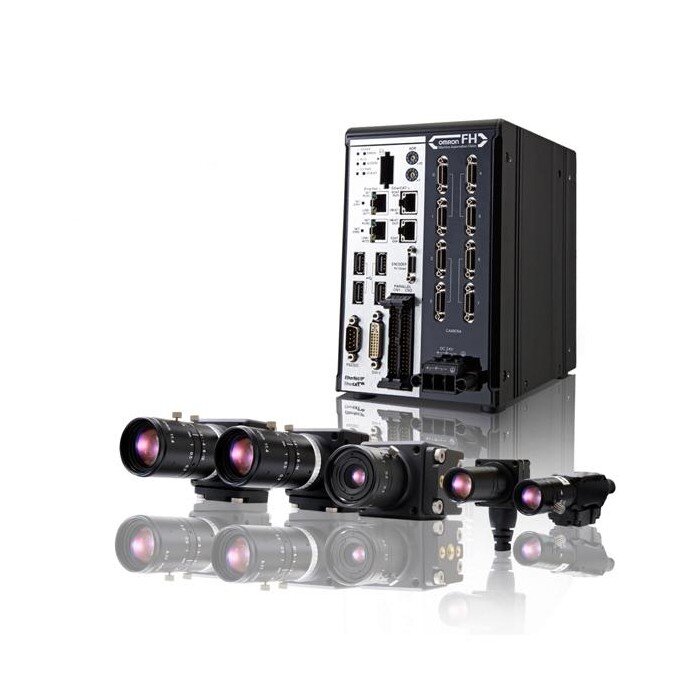

Tape and Reel AOI CCD Inspection System OMRON® Series

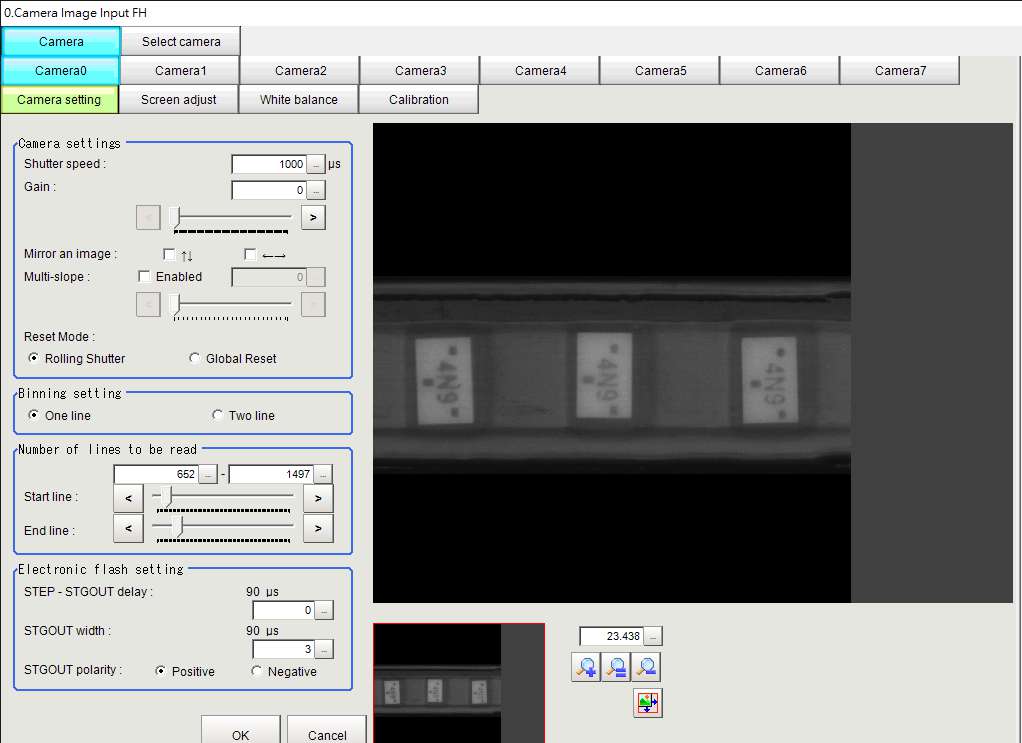

AOI CCD examination inspects:
- misplaced components
- reverse components
- missing components
- printing of part numbers and other codes
- component appearance comparison
- quantity counting
- auto-stop when component defection is found
- misplaced components
- reverse components
- missing components
- printing of part numbers and other codes
- component appearance comparison
- quantity counting
- auto-stop when component defection is found
Features
-Three stepper motor for synchronous feeding, positioning, and welding function.
-Rail width is from 8-56(mm) and can adjust by precision adjusting rod.
-Inspecting components with imported CCD lens (different components inspects with different CCD lens)
-The speed of examination is about 250-300pcs/min, and will different by pitch.
-The machine is installed in professional inspection software, friendly use and function well.
-AOI CCD examination inspects: appearance, lack of components, counting, and reversion. Please consider the actual inspection as final.
-MMI( man–machine interface) is used for set all parameters and speed function.
.jpg)
-Three stepper motor for synchronous feeding, positioning, and welding function.
-Rail width is from 8-56(mm) and can adjust by precision adjusting rod.
-Inspecting components with imported CCD lens (different components inspects with different CCD lens)
-The speed of examination is about 250-300pcs/min, and will different by pitch.
-The machine is installed in professional inspection software, friendly use and function well.
-AOI CCD examination inspects: appearance, lack of components, counting, and reversion. Please consider the actual inspection as final.
-MMI( man–machine interface) is used for set all parameters and speed function.
