Component Forming & Counting

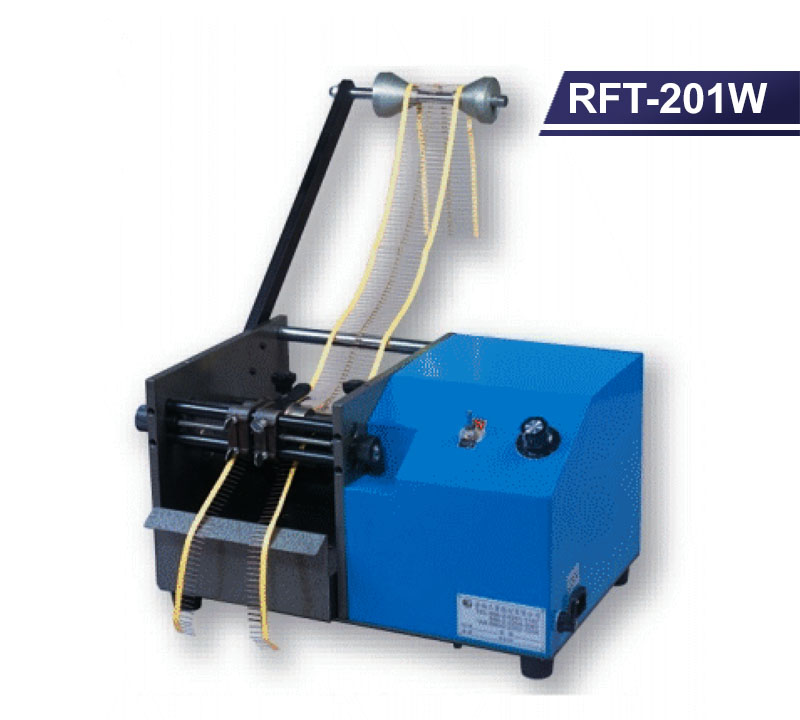

Taped Axial Lead Forming Machine
Power : 110V50Hz; 220V/60Hz
Dimension : 520(L) x 380(W) x 300(H) mm
Net Weight : 24 kgs
Capacity : 25,000pcs/Hour
Dimension : 520(L) x 380(W) x 300(H) mm
Net Weight : 24 kgs
Capacity : 25,000pcs/Hour
- Fasy maintenance, simple a operaton, and suitable for use on limvited space. No traring required.
- Excikent cutting or be ending performance for resistors and diodes.
- The pxroduction capacity ty is up to 60,000 pes/hr.
- Low cacital inestment. Never be affected by blackouts!
- Light and compact enough to be instaled on a bench top.
- Durabie and high turn-over rate!
- Customization aocording to your specification is available.
- E63-pitch gauge can be purchased optorally for U/S/W shape bendirng series to get pitch quicky.
Bending Types
| Models parameters |
Slim | Standard | Heavy duty | Vertical | Cut only |
| Manual | HRFT-301S | HRFT-301U | ----- | HRFT-301F | HRFT-301L |
| Motorized | RFT-201S | RFT-201U | RFT-201W | RFT-201F | RFT-201L |
| A Pitch (Body Length for F) | 5-40 mm | 6-40 mm | 6-40 mm | 4-18 mm | 3.5-37.6 mm |
| B Lead Length | 3.6-10 mm | ----- | Adiustable | ||
| C Shoulder | > 0.6mm | > 1.2 mm | > 1.2 mm | > 4 mm | > 3 mm |
| D Body Diameter | 1.5-8 mm | ||||
| H Support Length | ----- | <25 mm | ----- | ||
| W Lead Wire Diameter | ⌽0.35-⌽0.6 | ⌽0.35-⌽0.8 | ----- | ⌽0.35-⌽0.8 | ⌽0.35-⌽0.6 |
| ⌽0.35-⌽0.8 | ⌽0.35-⌽1.3 | ⌽0.35-⌽0.8 | |||
| P Pitch | ----- | 2.5-13.5 | ----- | ||
| R Bending Angle | ----- | 1 | ----- | ||
| Motorized Capacity | 40,000pcs/H | 84.000pcs/H | 40.000pcs/H | 40.000pcs/H | 40.000pcs/H |
