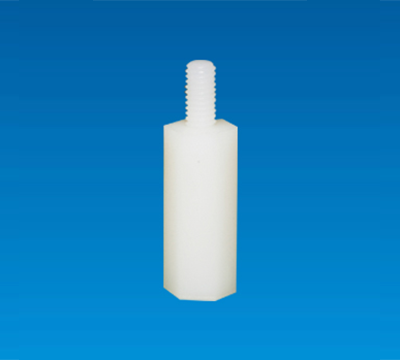

THREADED HEX SPACER SUPPORT WITH BOLT TH2M-6

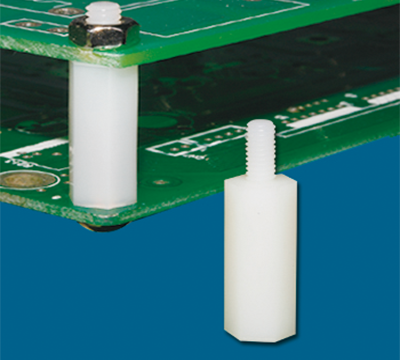

- Joint PCB with Chassis and other board.
- Provides distance,space and support between Circuit boards.
- Screw design,associate with nut to fasten the joint board
THREADED HEX SPACER SUPPORT WITH BOLT TH2M-6
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board.
- Provides distance,space and support between Circuit boards.
- Screw design,associate with nut to fasten the joint board
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- D:SCREW
- OPTIONAL MATERIAL: POM(94HB FLAMMABILITY)

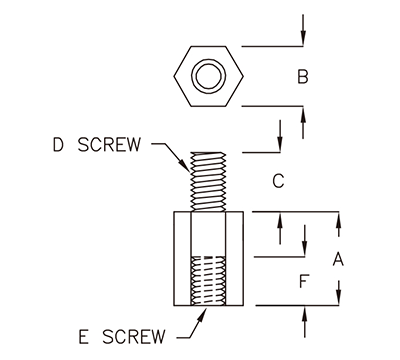

| PART NO | A | B | C | D | E | F | PACKAGE |
|---|---|---|---|---|---|---|---|
| TH2F-6C | 6.0 | 5.0 | 8.0 | M3 | M2.5 | 5.0 | 1000 |
| TH2M-6 | 6.0 | 4.9 | 5.0 | M2.6 | M2.6 | 5.0 | |
| TH-5 | 5.0 | 6.0 | 4.8 | M3 | M3 | 4.0 | |
| TH-6 | 6.4 | 6.0 | 4.8 | ||||
| TH-7 | 7.0 | 6.0 | 6.3 | M3 | M3 | 6.0 | |
| TH-8 | 8.0 | 6.0 | 6.3 | ||||
| TH-9 | 9.0 | 6.0 | 6.0 | ||||
| TH-10 | 10.0 | 6.0 | 6.0 | M3 | M3 | 8.0 | |
| TH-11 | 11.0 | 6.0 | 6.1 | ||||
| TH-12 | 12.7 | 6.0 | 6.4 | M3 | M3 | 10.0 | |
| TH-12A | 12.0 | 4.7 | 6.4 | ||||
| TH-14 | 14.0 | 6.0 | 6.0 | ||||
| TH-14C | 14.0 | 4.7 | 4.0 | ||||
| TH-15 | 15.0 | 6.0 | 6.0 | ||||
| TH-16 | 16.0 | 6.0 | 6.1 | ||||
| TH-17.5 | 17.5 | 6.0 | 6.0 | M3 | M3 | 10.0 | |
| TH-17.5A | 17.5 | 4.7 | 6.0 | ||||
| TH-18A | 18.4 | 6.0 | 6.1 | ||||
| TH-20 | 20.0 | 6.0 | 6.1 | M3 | M3 | 10.0 | 500 |
| TH-21 | 21.0 | 6.0 | 6.0 | M3 | M3 | 10.0 | 1000 |
| TH-22 | 22.0 | 6.0 | 6.4 | M3 | M3 | 10.0 | 500 |
| TH-25 | 25.0 | 6.0 | 6.5 | ||||
| TH-30 | 30.0 | 6.0 | 6.5 | ||||
| TH4-10 | 10.1 | 6.1 | 6.1 | M4 | M3 | 8.0 | 1000 |
| TH4-13 | 13.0 | 6.0 | 6.0 | M4 | M4 | 10.0 | |
| TH4-15 | 15.0 | 6.0 | 6.0 | ||||
| TH4-19 | 19.0 | 8.0 | 5.5 | M4 | M4 | 8.0 | 500 |
| TH4-25 | 25.0 | 6.0 | 6.4 | M4 | M4 | 10.0 | |
| TH4-30 | 30.2 | 6.0 | 6.4 | ||||
| TH4-37 | 37.0 | 8.0 | 5.5 | M4 | M4 | 8.0 | 200 |
| TH4-45 | 45.0 | 6.0 | 6.4 | M4 | M4 | 10.0 |
