Adhesive Sealant & Lubricant

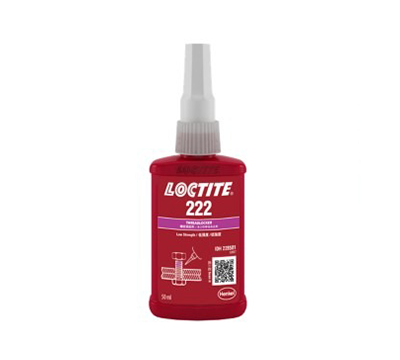

Threadlocking adhesive LOCTITE 222
- Ideal for low-strength threadlocking of adjusting screws, countersunk head screws and set screws
- Prevents loosening on vibrating assemblies, e.g. pumps, gear boxes or presses
- Especially suited to small thread sizes
- Permits disassembly with hand tools
- P1 NSF Reg. No.: 123002
Threadlocking Adhesive - low strength. Easy disassembly. Suitable for all metal threaded assemblies.
LOCTITE® 222 is a low-strength threadlocker that allows the adjustment of screws including countersunk head screws and set screws. Good on low-strength metals which could fracture during disassembly, e.g. aluminum or brass. The product works on all metals, including passive substrates such as stainless steel, aluminum and plated surfaces. t is proven to be tolerant of minor contamination due to industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids.
Technical Information
LOCTITE® 222 is a low-strength threadlocker that allows the adjustment of screws including countersunk head screws and set screws. Good on low-strength metals which could fracture during disassembly, e.g. aluminum or brass. The product works on all metals, including passive substrates such as stainless steel, aluminum and plated surfaces. t is proven to be tolerant of minor contamination due to industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids.
Technical Information
| Agency Approvals / Specifications | NSF P1 Reg No: 123002 |
| Application Method | Dispense System, Manual |
| Application Temperature | -55.0 - 150.0 °C (-65.0 - 300.0 °F ) |
| Applications | Threadlocking |
| Breakaway Torque, M10 Steel Nuts/Bolts | 6.0 N·m (50.0 in./lb. ) |
| Color | Purple |
| Cure Type | Anaerobic Cure |
| Fixture Time | 20.0 min. |
| Key Characteristics | Thixotropic, General Purpose, Strength: Low Strength, Fluorescent, Disassembly: Removable |
| Physical Form | Liquid |
| Prevail Torque, M10 Steel Nuts/Bolts | 4.0 N·m (35.0 in./lb. ) |
| Substrates | Metal, Metal: Passive Metal |
| Technology | Acrylic |
| Viscosity, Speed 20 RPM | 1200.0 mPa·s (cP) |
