Adhesive Sealant & Lubricant

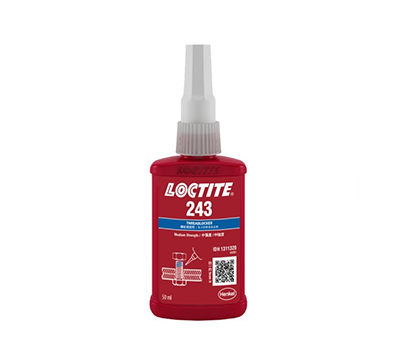

Threadlocking adhesive LOCTITE 243 Blue Medium Strength Threadlocker
- Prevents loosening on vibrating assemblies, e.g. pumps, gear boxes or presses
- Works on all metals, including passive substrates (e.g. stainless steel, aluminum, plated surfaces)
- Proven to tolerate minor contamination by industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids
- Permits disassembly with hand tools for servicing
- P1 NSF Reg. No.: 123000
LOCTITE 243 is a medium strength blue threadlocking adhesive that seals and secures metal nuts and bolts to prevent loosening due to shock and vibration.
LOCTITE® 243 is a general purpose threadlocker that provides a medium strength bond. LOCTITE 243 works on all metals, including passive substrates such as stainless steel, aluminum and plated surfaces. It is proven to be tolerant of minor contamination due to industrial oils, e.g., motor oils, corrosion prevention oils and cutting fluid.
Technical Information
LOCTITE® 243 is a general purpose threadlocker that provides a medium strength bond. LOCTITE 243 works on all metals, including passive substrates such as stainless steel, aluminum and plated surfaces. It is proven to be tolerant of minor contamination due to industrial oils, e.g., motor oils, corrosion prevention oils and cutting fluid.
Technical Information
| Agency Approvals / Specifications | NSF P1 Reg No: 123000 |
| Application Method | Dispense System, Manual |
| Application Temperature | -55.0 - 180.0 °C (-65.0 - 360.0 °F ) |
| Applications | Threadlocking |
| Breakaway Torque, M10 Steel Nuts/Bolts | ~26.0 N·m (230.0 in./lb. ) |
| Color | Blue |
| Cure Type | Anaerobic Cure |
| Fixture Time | 10.0 min. |
| Key Characteristics | Thixotropic, General Purpose, Strength: Medium Strength, Primerless, Oil Tolerant, Fluorescent, Disassembly: Removable |
| Physical Form | Liquid |
| Prevail Torque, M10 Steel Nuts/Bolts | 5.0 N·m (40.0 in./lb. ) |
| Specific Gravity, @ 23.0 °C | 1.08 |
| Substrates | Metal, Metal: Passive Metal |
| Technology | Acrylic |
| Viscosity, Speed 20 RPM | 2150.0 mPa·s (cP) |
