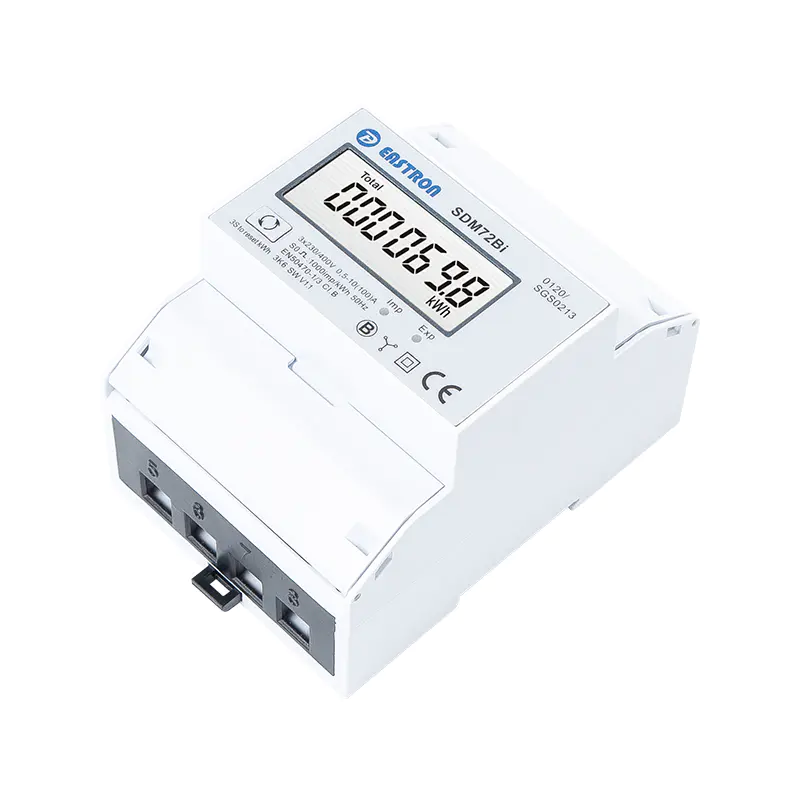

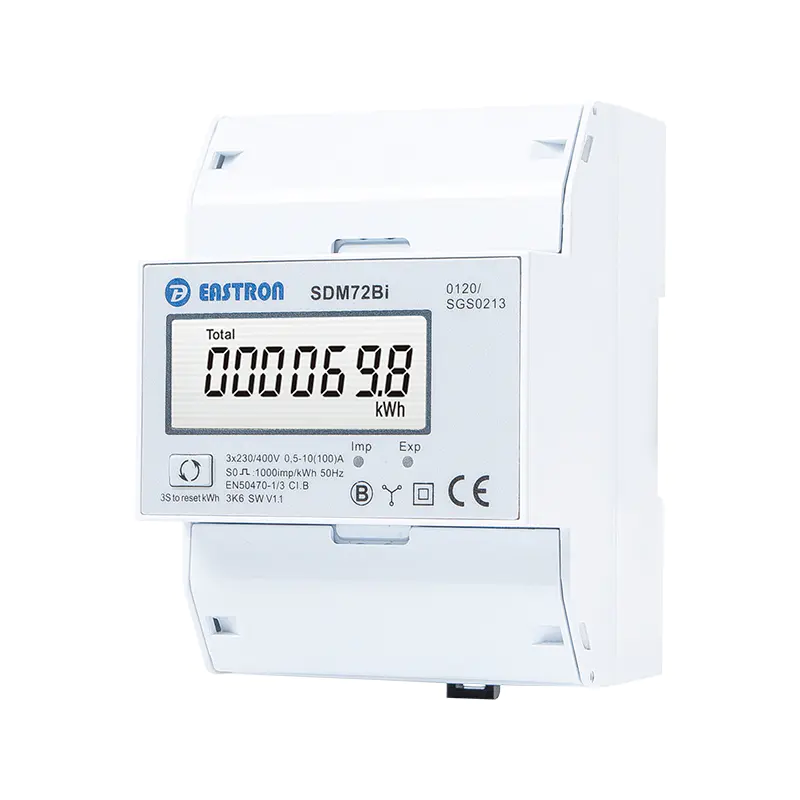

Three Phase Four Wire Energy Meter Eastron SDM72BI
- Max. 100A direct load
- 4 Modules 72mm width
- Measures bi-directional energy(kWh)+ power(W)
- Resettable energy
- Pulse output
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on three phase AC system (3P+N) |
|
|
Measurement Accuracy |
Power |
1% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0/ EN50470-1/3 Class B |
|
|
Input & Output |
|||
|
Input-Current |
CT Type |
CT Primary |
1-9999A |
|
CT Secondary |
1A/5A |
||
|
Min Current |
0.25A |
||
|
Starting Current |
10mA |
||
|
Direct Type
|
Rated Current |
10A |
|
|
Max Current |
100A |
||
|
Min Current |
0.5A |
||
|
Starting Current |
40mA |
||
|
Output |
SDM72D / DR / BI |
Pulse Output for active energy |
|
|
SDM72CT-D |
Pulse Output for active energy |
||
