Energy Meter & Current Transformer

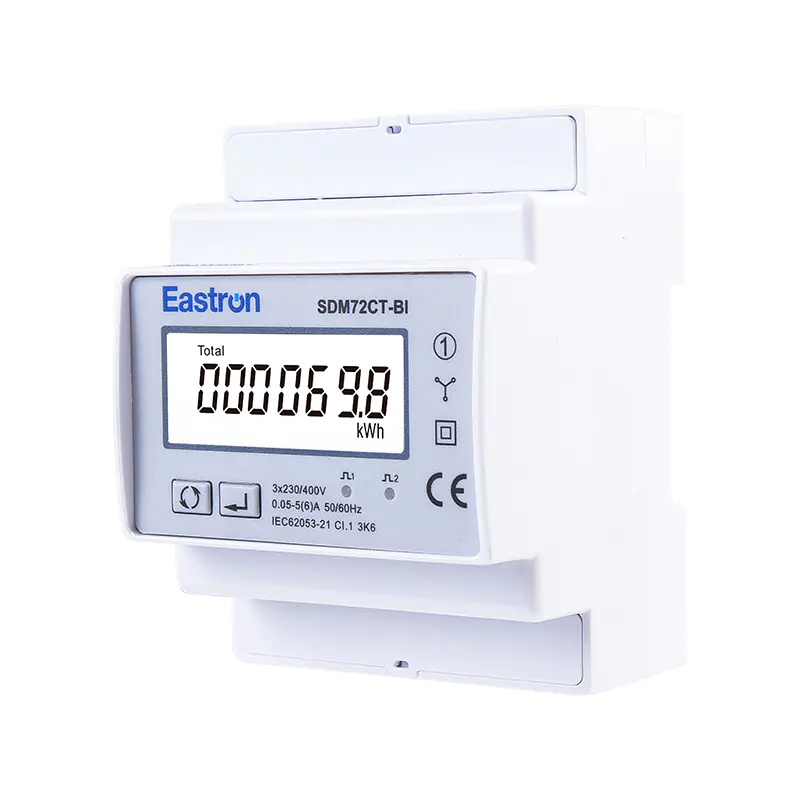

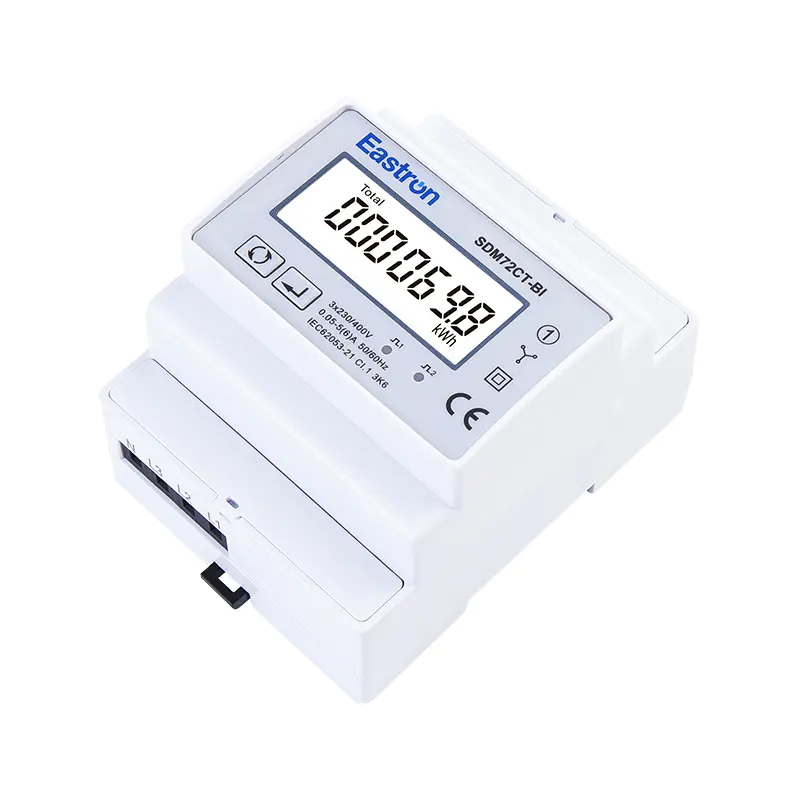

Three Phase Four Wire Energy Meter Eastron SDM72CT-BI
- Bi-directional Measurement
- Pulse Output
- 5A CT Operated
- 4 Modules 72mm width
- Class 1.0 Accuracy
- 35mm Din Rail Mounting
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on three phase AC system (3P+N) |
|
|
Measurement Accuracy |
Power |
1% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0 |
|
|
Input & Output |
||
|
Input-Current |
CT Primary |
1-9999A |
|
CT Secondary |
1A/5A |
|
|
Min Current |
0.25A |
|
|
Starting Current |
10mA |
|
|
Output |
Pulse Output for active energy |
|
