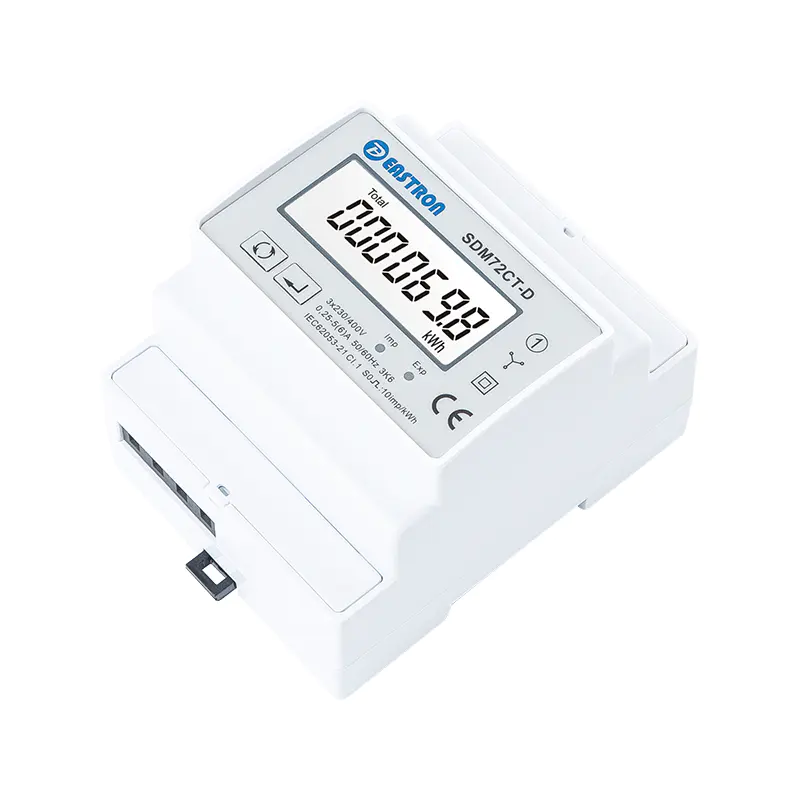

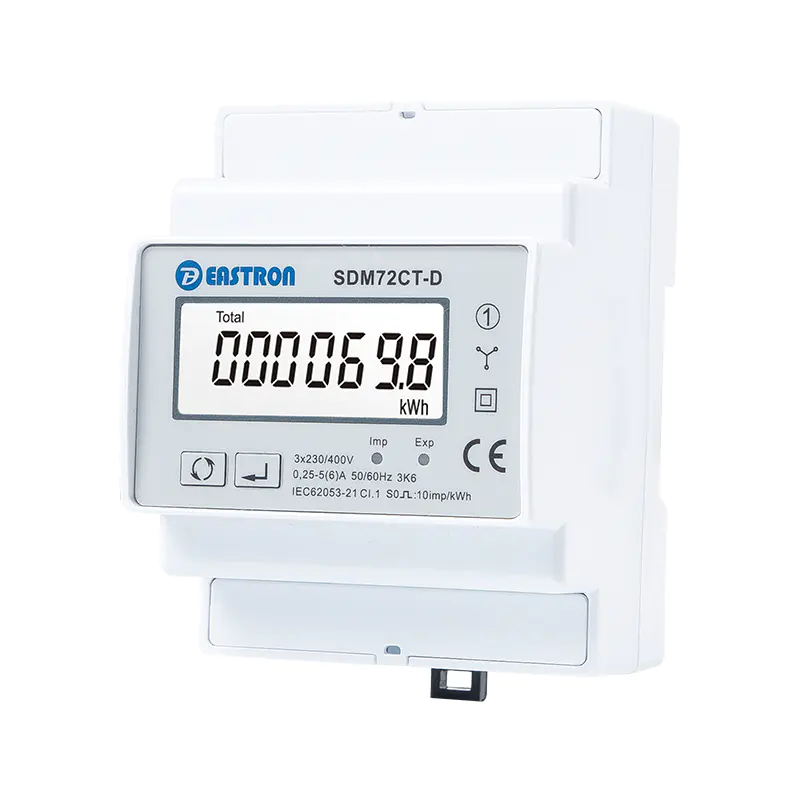

Three Phase Four Wire Energy Meter Eastron SDM72CT-D
- Measures Active Energy(kWh)
- Pulse Output
- CT Operated
- 4 Modules 72mm width
- Class 1.0 Accuracy
- 35mm Din Rail Mounting
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on three phase AC system (3P+N) |
|
|
Measurement Accuracy |
Energy |
IEC 62053-21 Class 1.0 |
|
Input & Output |
|||
|
Input-Current |
CT Type |
CT Primary |
1-9999A |
|
CT Secondary |
1A/5A |
||
|
Min Current |
0.25A |
||
|
Starting Current |
10mA |
||
|
Direct Type
|
Rated Current |
10A |
|
|
Max Current |
100A |
||
|
Min Current |
0.5A |
||
|
Starting Current |
40mA |
||
|
Output |
SDM72D / DR / BI |
Pulse Output for active energy |
|
|
SDM72CT-D |
Pulse Output for active energy |
||
