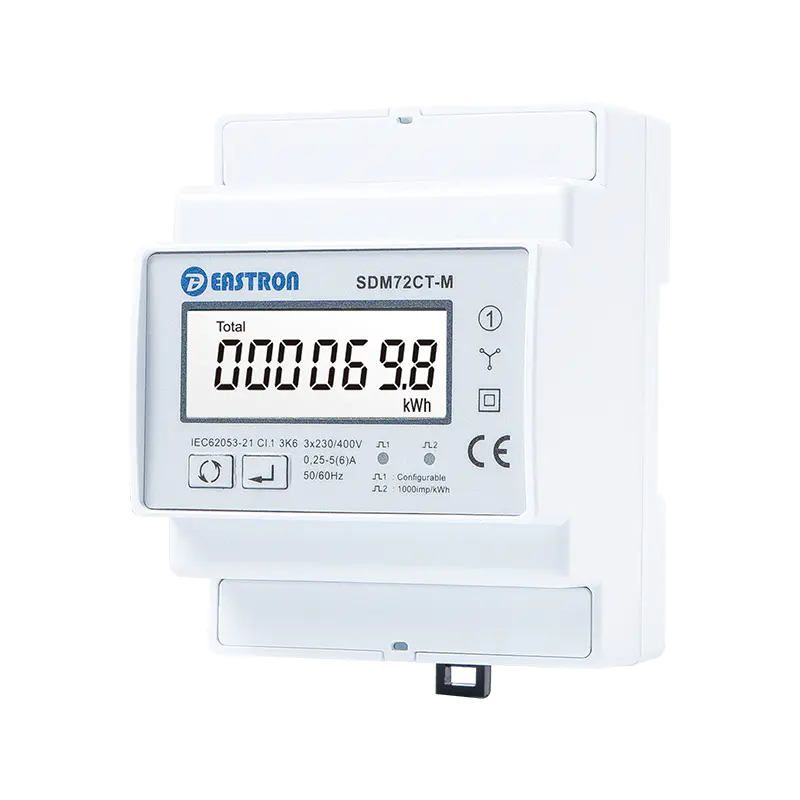

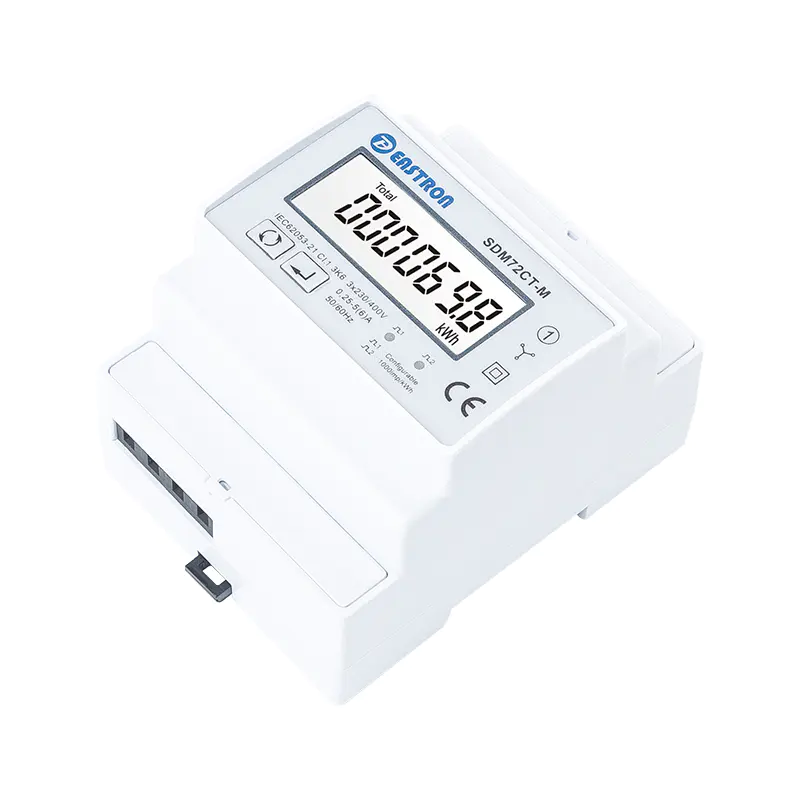

Three Phase Four Wire Energy Meter Eastron SDM72CT-M
- Measures Active Energy(kWh)+ Power(W)
- Bi-directional Measurement
- Resettable Energy
- RS485 Modbus + Pulse Output
- CT Operated
- 4 Module Wide
- Class 1.0 Accuracy
- 35mm Din Rail Mounting
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on three phase AC system (3P4W) |
|
|
Measurement Accuracy |
Power |
1% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0 / EN50470-1/3 Class B |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input-Current |
CT Type |
CT Primary |
1-9999A |
|
CT Secondary |
1A/5A |
||
|
Min Current |
0.25A |
||
|
Starting Current |
10mA |
||
|
Direct Type
|
Rated Current |
10A |
|
|
Max Current |
100A |
||
|
Min Current |
0.5A |
||
|
Starting Current |
40mA |
||
|
SDM72D-M |
2 Pulse Output + RS485 Modbus |
||
|
SDM72CT-M |
2 Pulse Output + RS485 Modbus |
||
|
Modbus Communications |
|
|
Interface Standard and Protocol |
RS485 and MODBUS RTU |
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
