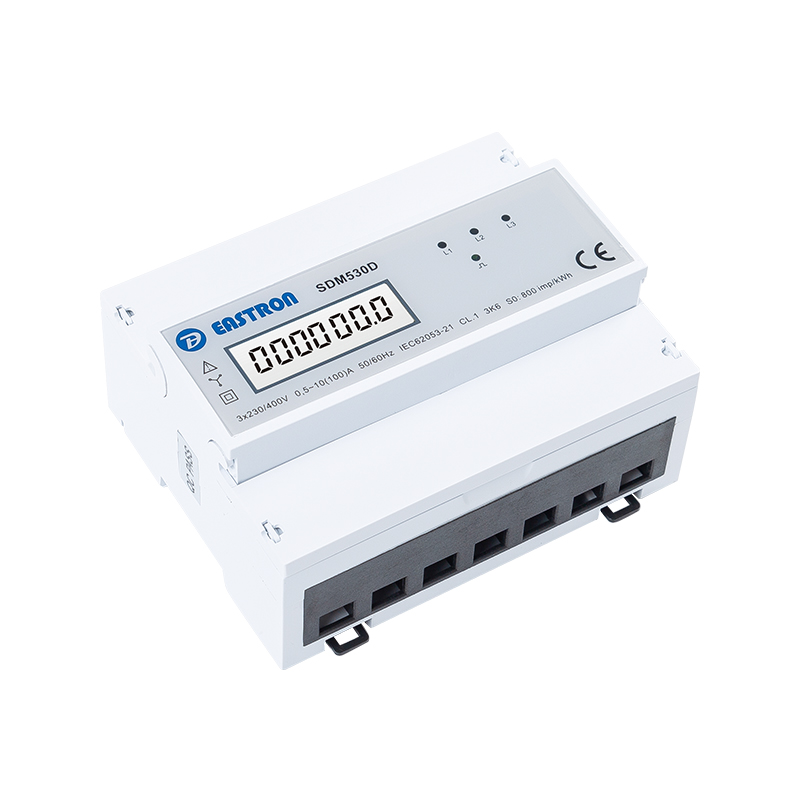

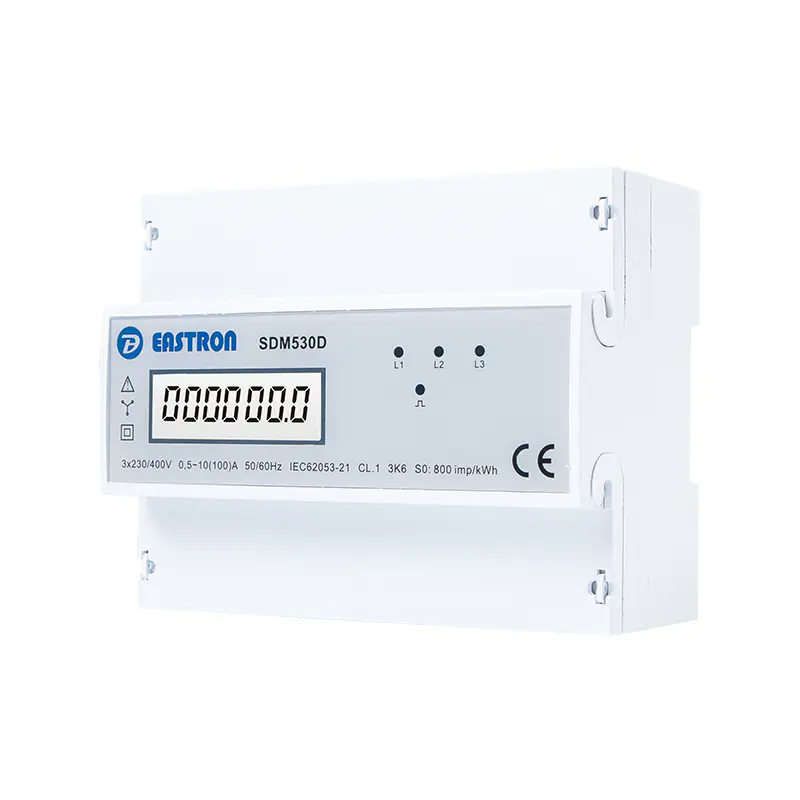

Three Phase Four Wire Kwh Meter Eastron SDM530D
- Max. 100A Direct Load
- 7 Modules width
- Active Energy Measurement
- Pulse Output
- High Accuracy of Class 1
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on three phase AC system (3P+N) |
|
|
Measurement Accuracy |
Energy |
IEC 62053-21 Class 1.0 |
|
Input & Output |
|||
|
Input
|
Current |
Rated Current |
10A |
|
Max Current |
100A |
||
|
Min Current |
0.5A |
||
|
Starting Current |
40mA |
||
|
Voltage |
Rated Voltage (Un) |
230V |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM530D |
Pulse Output |
|
|
SDM530D-2T |
Pulse Output + 2 Tariffs (Dual Power Source) |
||
