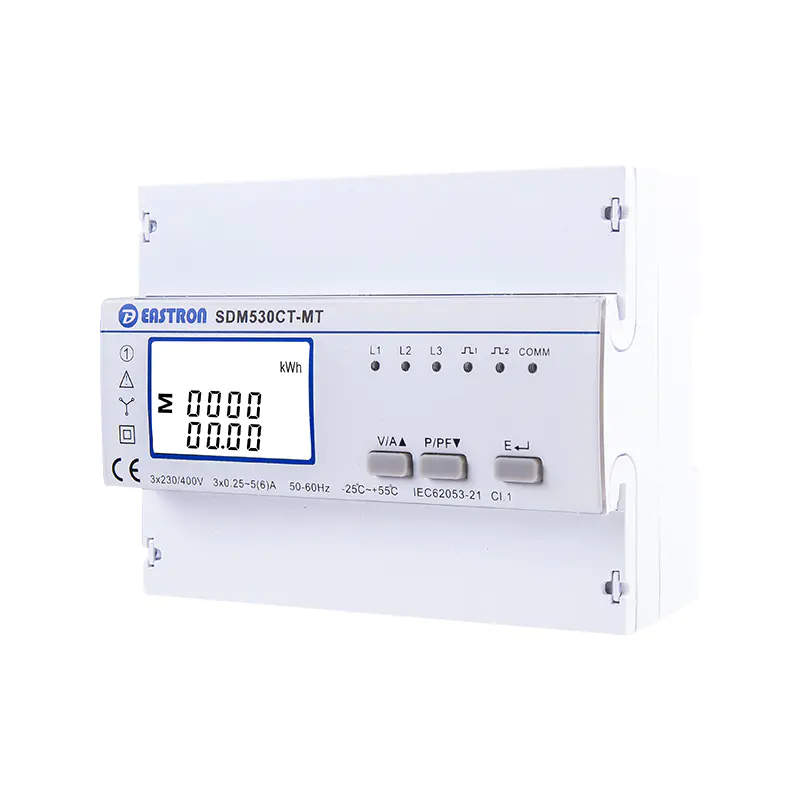

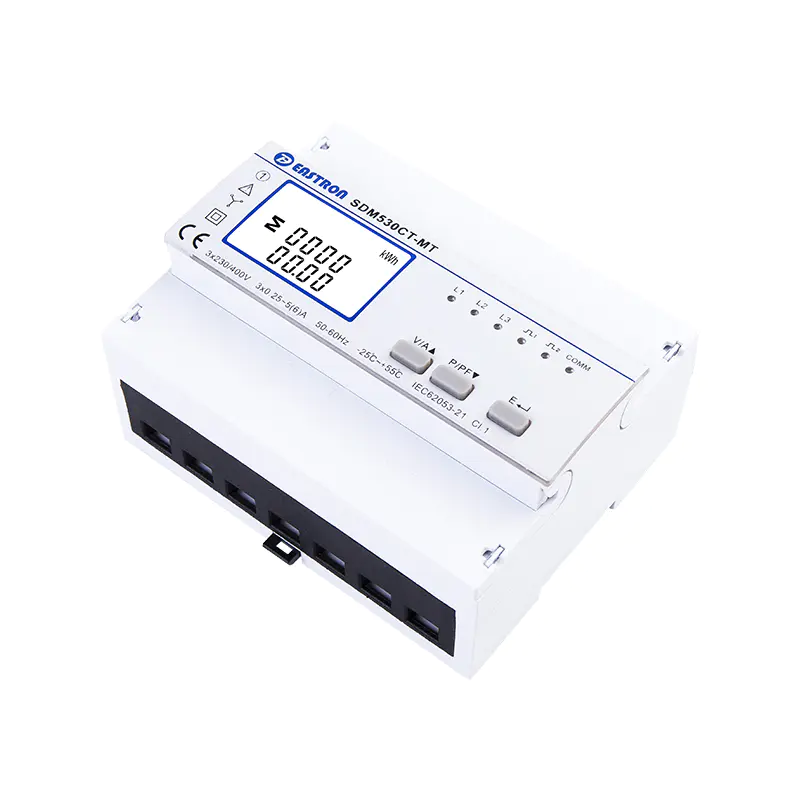

Three Phase Four Wire Multi-function Energy Meter Eastron SDM530CT-MT
- Multi-tariff (RTC)
- 1/5A CT input
- 7 Module Size
- Multi-parameters Measurement
- Bi-directional Mesurement
- 2 Pulse Outputs
- RS485 Modbus RTU
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on three phase AC system (3P4W) |
|
|
Measurement Accuracy |
Power |
1% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0 |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input-Current |
CT Type |
CT Primary |
1-9999A |
|
CT Secondary |
1A/5A |
||
|
Min Current |
0.25A |
||
|
Starting Current |
10mA |
||
|
Communication |
2 Pulse Outputs + RS485 Modbus |
||
|
Modbus Communications |
|
|
Interface Standard and Protocol |
RS485 and MODBUS RTU |
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Mechanical Characteristics |
|
|
Weight |
650g |
|
IP Degree of Protection (IEC 60529) |
IP51 in door |
|
Dimensions (WxHxD) |
100x125x65 mm |
|
Mounting Position |
Vertical |
|
Material of meter case |
Self-extinguishing UL 94 V-0 |
|
Mechanical environment |
M1 |
|
Environmental Characteristics |
|
|
Operating Temperature |
-25 to 55°C |
|
Storage Temperature |
-40 to 70°C |
|
Humidity Rating |
<95% RH at 50 °C (non-condensing) |
|
Pollution Degree |
2 |
|
Altitude |
2000m |
