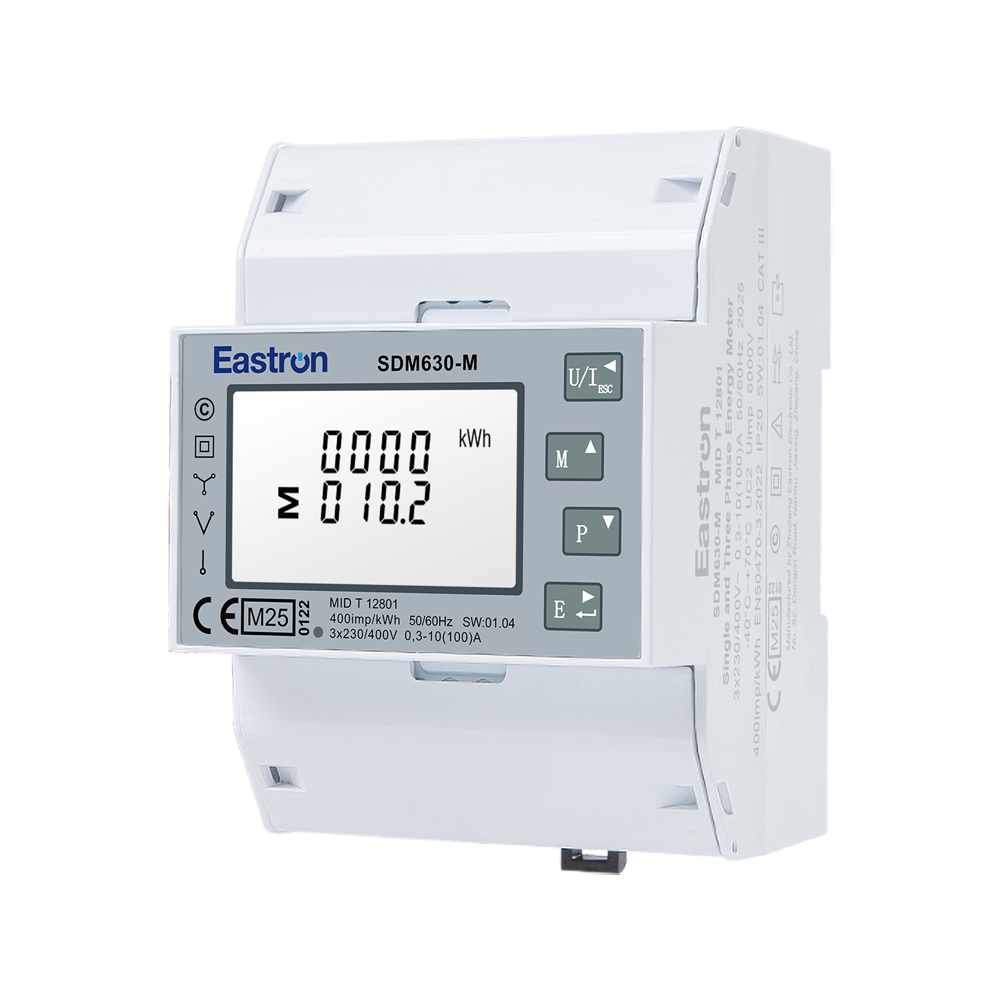

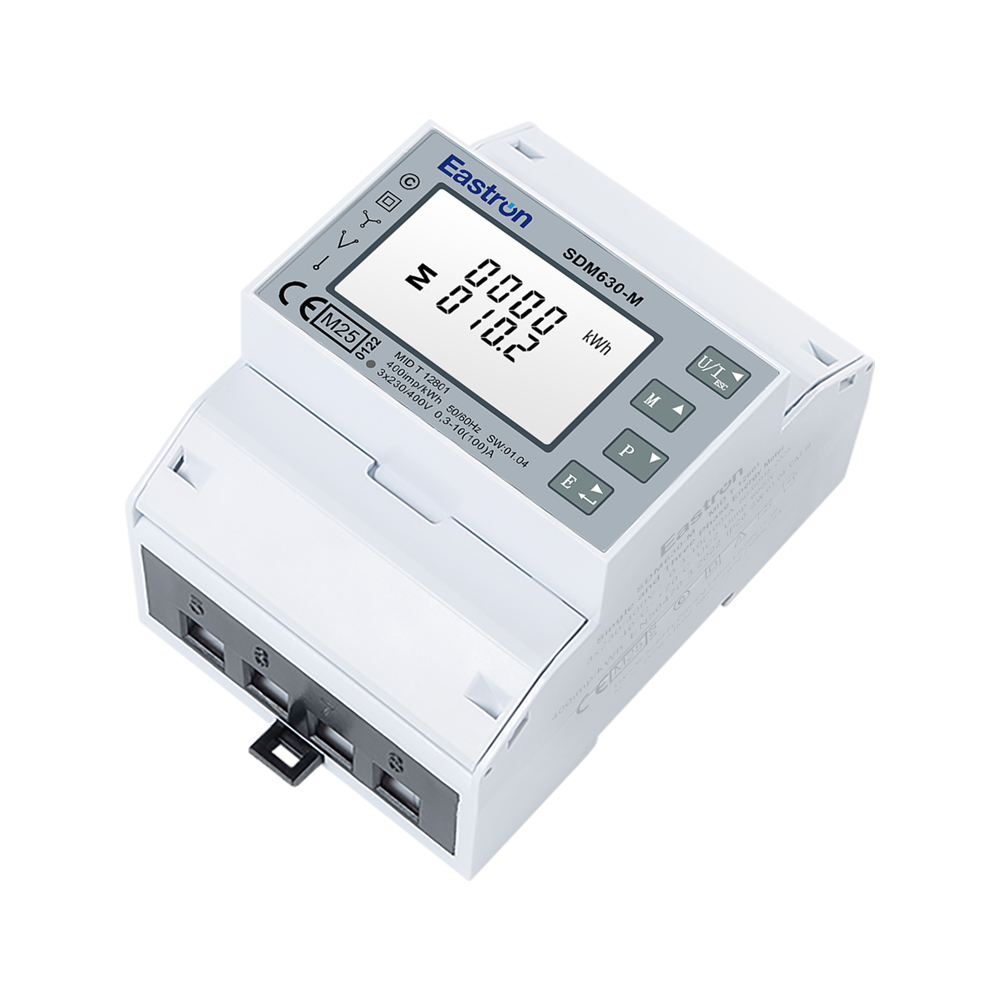

Three Phase Multi-function Energy Meter Eastron SDM630-M
- Multi-measurement: kWh,kVarh,KW,Kvar,KVA,P,F,PF,Hz,dmd,V,A,etc.
- Max. 100A Direct Connection
- Work with 3P4W/3P3W/1P2W
- Class 0.5/C or Class 1/B Accuracy
- Bi-directional Measurement
- 2 Pulse Outputs
- RS485 Modbus
- MID Approved
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement Accuracy |
Voltage |
±0.5%
|
|
Current |
±0.5% |
|
|
Frequency |
±0.2% |
|
|
Power Factor |
±1% |
|
|
Active Power |
±1% |
|
|
Reactive Power |
±1% |
|
|
Apparent Power |
±1% |
|
|
Active Energy |
Class 1/0.5 IEC 62053-21 Class B/C EN50470-3:2022 |
|
|
Reactive Energy |
Class 2 IEC 62053-23 |
|
|
Input & Output |
|||
|
Input |
Current
|
Rated Current (Ib/Iref) |
10A |
|
Max Current(Imax.) |
100A |
||
|
Min Current(Imin.) |
0.3A |
||
|
Starting Current |
40mA |
||
|
Voltage |
Rated Voltage (Un) |
230V L-N / 120V L-N |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
2 Pulse Outputs + RS485 Modbus |
||
|
RS485 Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
