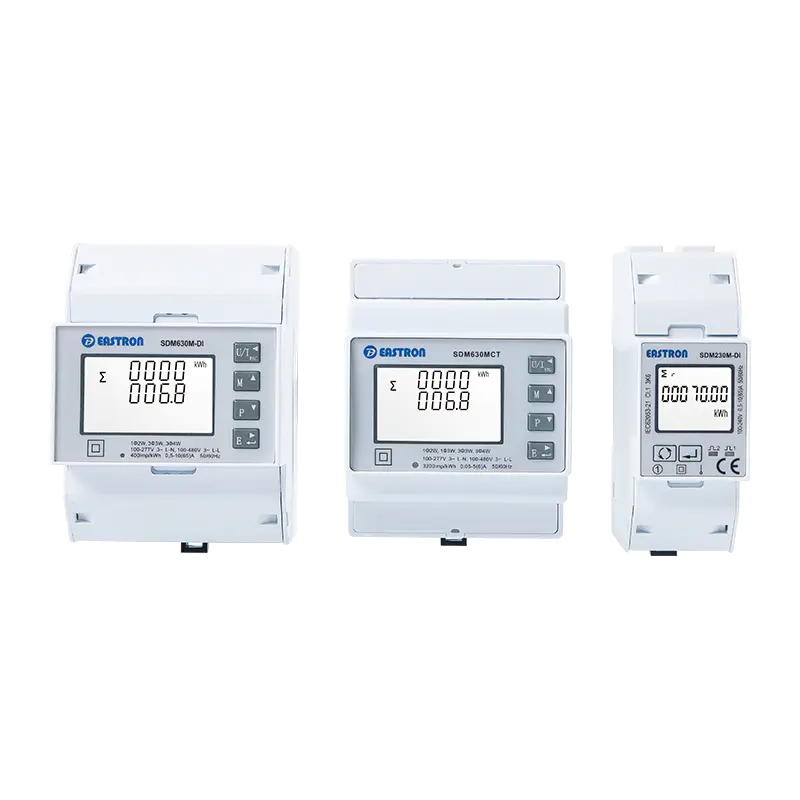

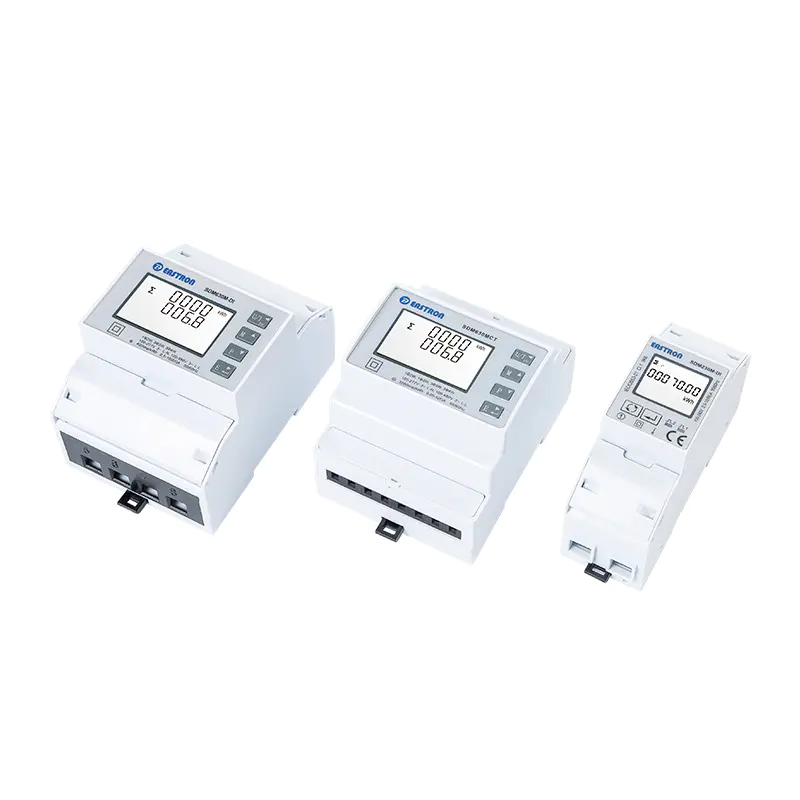

Three Phase Multi-function Energy Meter Eastron SDM630MCT-Lora
- Three Phase CT operated
- Support auto-upload mode for uploading data
- Download/ Upload time interval can be set or adjusted.
- Confirmations/ Off line detection available
- Support auto-resume mode
- Wide range of LoRa frequency band
- (EU868/AS923/CN433/CN470/AU915/US902 MHz, etc.)
- High accuracy, Class 1 /Class 0.5s
- ETL, MID certified
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement Accuracy |
Voltage |
±0.5% |
|
Current |
±0.5% |
|
|
Frequency |
±0.2% |
|
|
Power Factor |
±1% |
|
|
Active Power |
±1% |
|
|
Reactive Power |
±1% |
|
|
Apparent Power |
±1% |
|
|
Active Energy |
Class 0.5S IEC 62053-22, Class 1.0 IEC 62053-21 Class B and C EN50470-3:2022 |
|
|
Reactive Energy |
Class 2 IEC62053-23 |
|
|
Input & Output |
|||
|
Input |
Current |
CT Secondary |
1A/5A |
|
CT Primary |
1-9999A |
||
|
Min Current |
0.25A |
||
|
Starting Current |
20mA |
||
|
Voltage |
Rated Voltage (Un) |
230V L-N / 120V L-N |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM630MCT/ MT |
2 Pulse Outputs + RS485 Modbus |
|
|
SDM630MCT-2T/ SDM630MCT-Mbus-2T |
2 Pulse Outputs + RS485 Modbus + 2T (Dual Power Source) |
||
|
SDM630MCT-Mbus |
2 Pulse Outputs + M-bus EN13757 |
||
|
SDM630MCT-LoRa |
2 Pulse Outputs + LoraWAN |
||
|
RS485 Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
|
M-Bus EN13757-3 Communications |
|
|
Communication Address |
1~250 |
|
Transmission Distance |
1000m Maximum |
|
Baud Rate |
300bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
LoRaWAN Communications |
|
|
Communication Frequency |
EU868/ AS923/ AU915/ US915, etc. |
