Energy Meter & Current Transformer

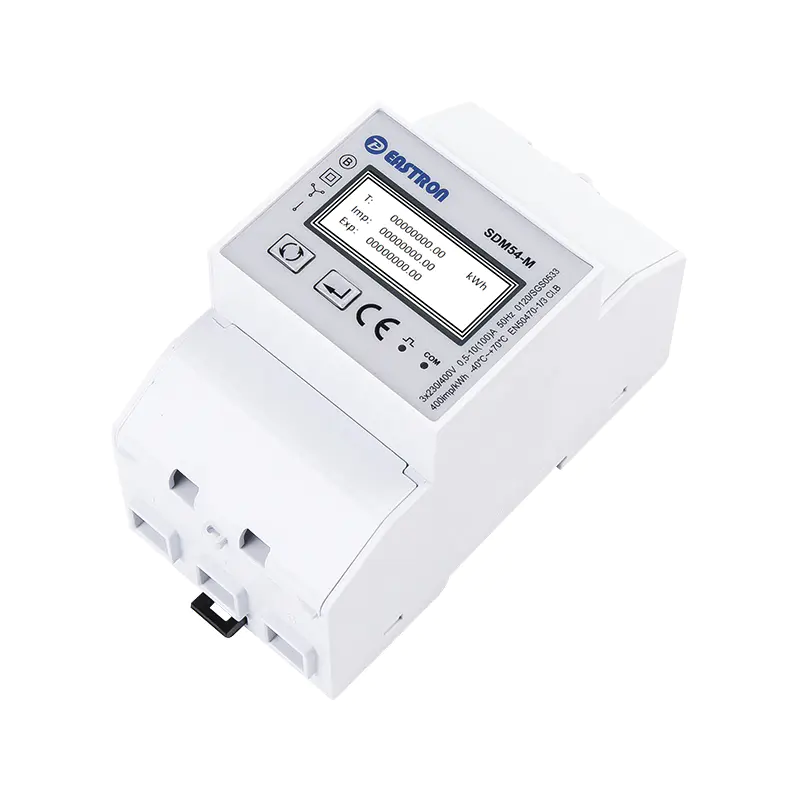

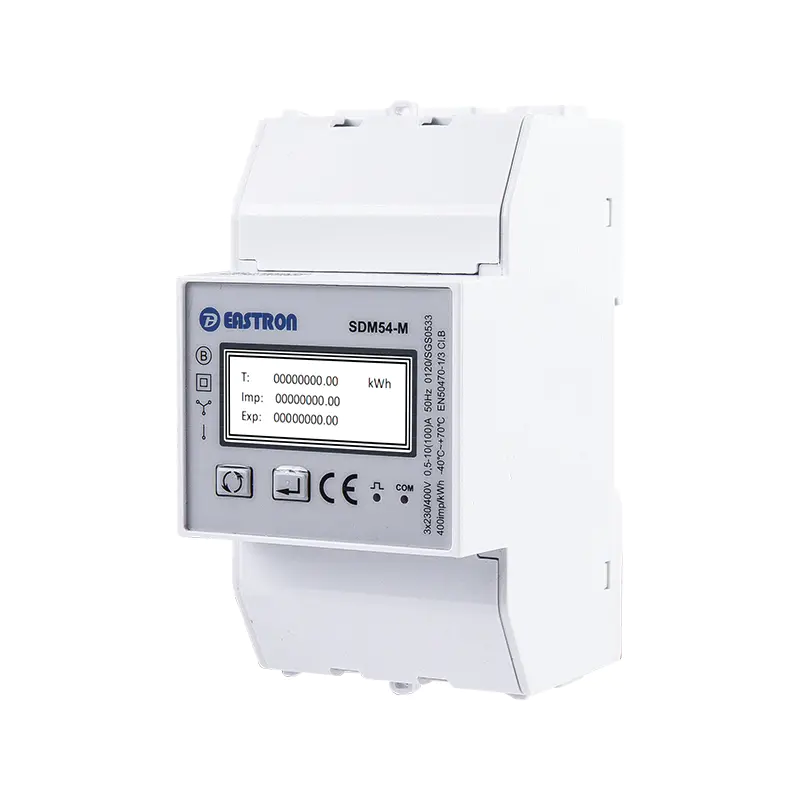

Three Phase Multi-function Power Analyzer Eastron SDM54M
- Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,V etc
- LCD with backlit
- 2 Pulse Output +Modbus
- Bi-directional measurement
- 100A direct load
- 3 Module 54mm width
- MID approved
- 3P4W,1P2W
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement Accuracy |
Power |
0.5% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0 EN50470-1/3 Class B |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input |
Current
|
Rated Current (Ib/Iref) |
10A |
|
Max Current(Imax.) |
100A |
||
|
Min Current(Imin.) |
0.5A |
||
|
Starting Current |
20mA |
||
|
Voltage |
Rated Voltage (Un) |
230V L-N / 120V L-N |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM54-Modbus |
2 Pulse Outputs + RS485 Modbus |
|
|
SDM54-2T |
2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source) |
||
|
RS485 Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~38400bps, Default:9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<80 mS |
