Sensor

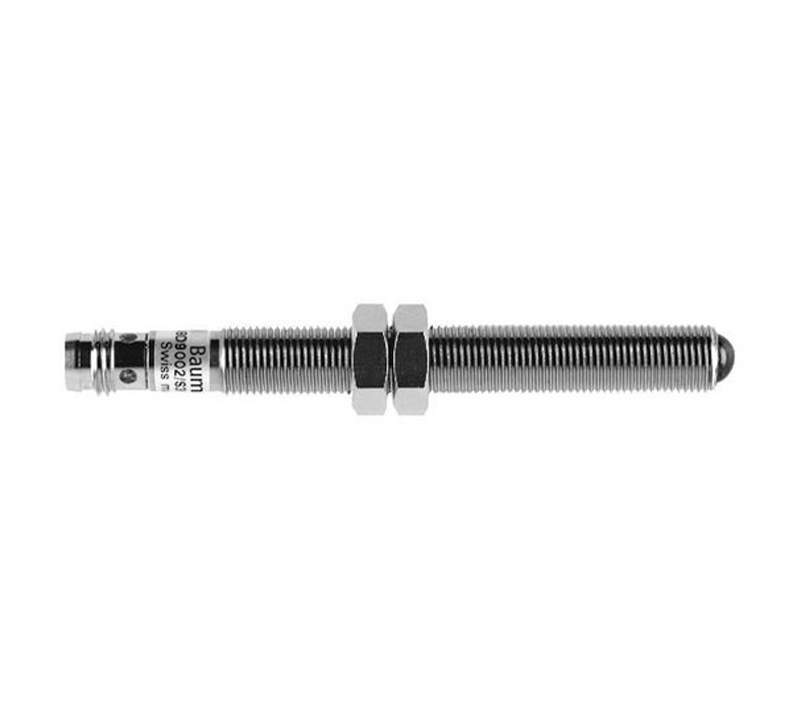

Through beam sensors Baumer FSAM 08D9002/S35
| general data |
| type |
through beam sensor |
| emitter / receiver |
emitter |
| light source |
pulsed infrared diode |
| actual range Sb |
2.5 m |
| nominal range Sn |
3 m |
| wave length |
880 nm |
| electrical data |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
48 mA |
| current consumption typ. |
17 mA |
| reverse polarity protection |
yes |
| mechanical data |
| width / diameter |
8 mm |
| height / length |
75.5 mm |
| type |
cylindrical threaded |
| housing material |
brass nickel plated |
| front (optics) |
PC |
| connection types |
connector M8, 3 pin |
| ambient conditions |
| operating temperature |
-25 ... +65 °C |
| protection class |
IP 65 |
