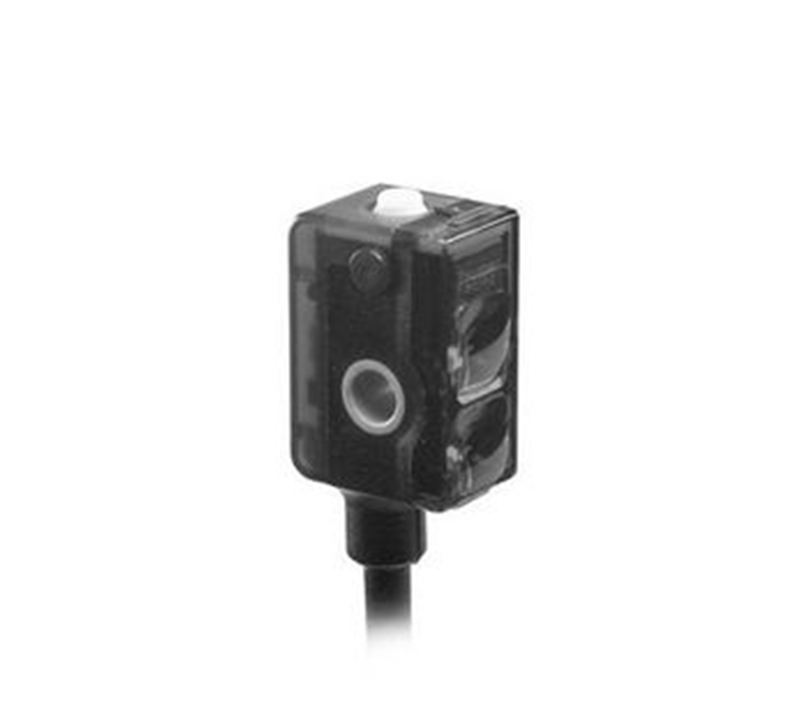

Through beam sensors Baumer FSDK 07D9601/KS35A
| general data |
| type |
through beam sensor |
| emitter / receiver |
emitter |
| light source |
pulsed red LED |
| actual range Sb |
2 m |
| nominal range Sn |
2.5 m |
| wave length |
660 nm |
| electrical data |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
20 mA |
| current consumption typ. |
12 mA |
| reverse polarity protection |
yes |
| mechanical data |
| width / diameter |
8 mm |
| height / length |
16.2 mm |
| depth |
10.8 mm |
| type |
rectangular |
| housing material |
plastic (PMMA, MABS, PA) |
| front (optics) |
PMMA |
| connection types |
flylead connector M8 4 pin, L=200 mm |
| ambient conditions |
| operating temperature |
-20 ... +50 °C |
| protection class |
IP 65 |
