Sensor

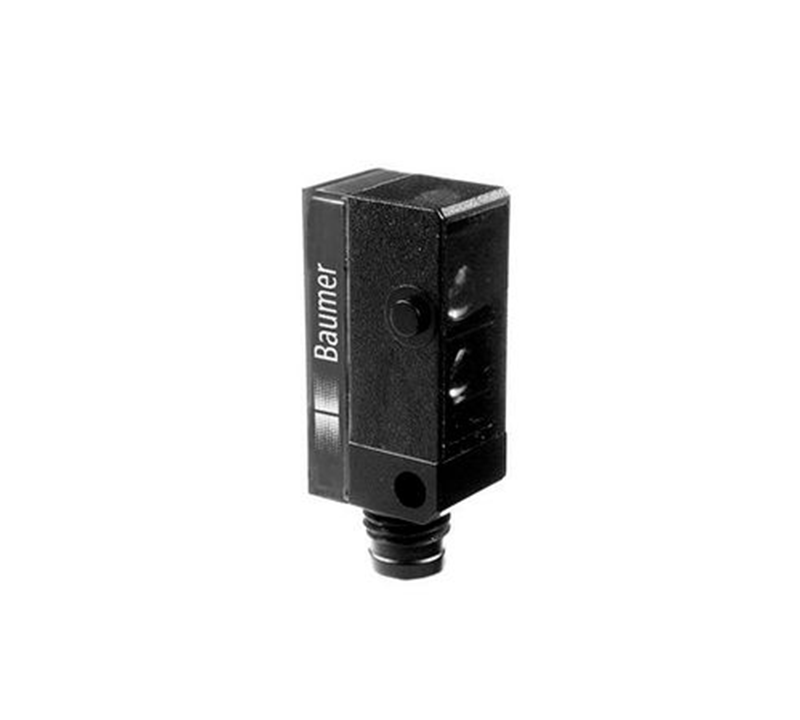

Through beam sensors Baumer FSDK 10D9601/S35A
| general data |
| type |
through beam sensor |
| emitter / receiver |
emitter |
| light source |
pulsed red LED |
| actual range Sb |
5 m |
| nominal range Sn |
6 m |
| wave length |
660 nm |
| electrical data |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
23 mA |
| current consumption typ. |
15 mA |
| reverse polarity protection |
yes |
| mechanical data |
| width / diameter |
10.4 mm |
| height / length |
27 mm |
| depth |
14 mm |
| type |
rectangular |
| housing material |
plastic (ASA) |
| front (optics) |
PMMA |
| connection types |
connector M8 4 pin |
| ambient conditions |
| operating temperature |
-25 ... +65 °C |
| protection class |
IP 67 |
