Screwing
Torque Linear Arm AC

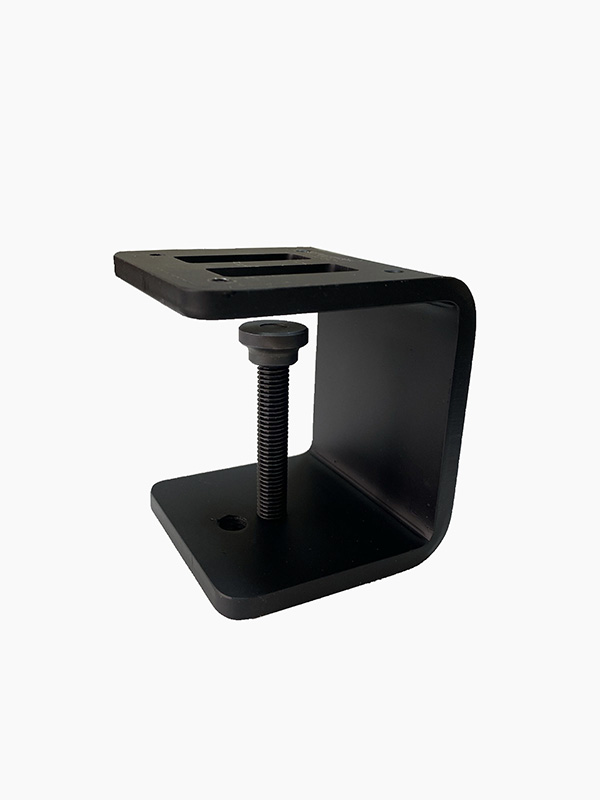

1. The C Shaped Table Clamps is convenient to fix the Torque Reaction Arm/Torque Supporting Arm frame on different work desks.
2. Rugged and durable, long service life.
3. Use 6mm hexagon wrench, easy to install and disassemble.
4. C Shaped Table Clamps avoids tedious installation and damage to the table body.
2. Rugged and durable, long service life.
3. Use 6mm hexagon wrench, easy to install and disassemble.
4. C Shaped Table Clamps avoids tedious installation and damage to the table body.
Feature

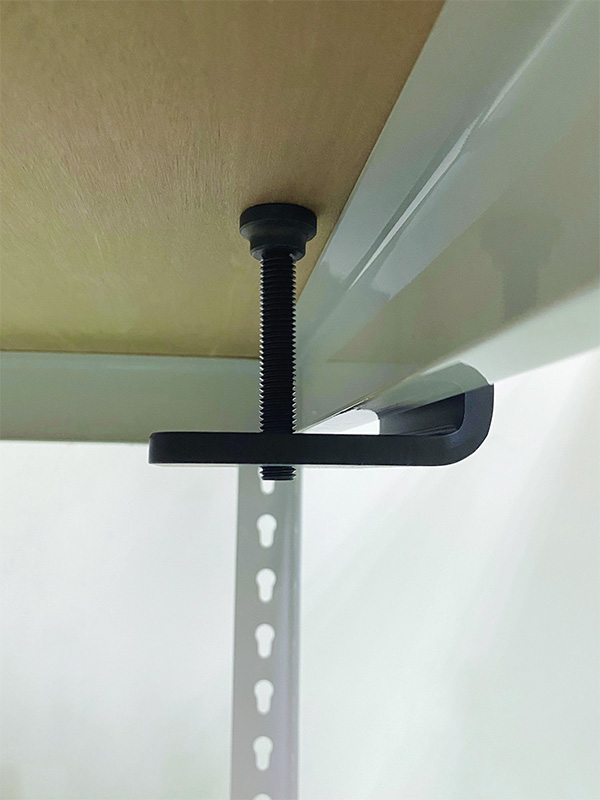

- C-shaped table clamps are provided as options according to requirements, so that the installation arm frame is not restricted by the table shape, and the C-shaped table clamps can be easily installed on the work table and firmly fixed on any work table.

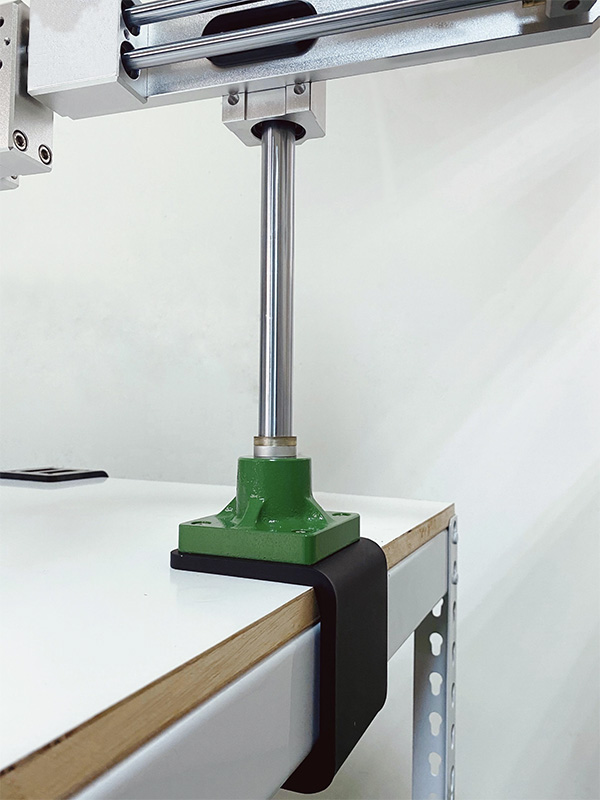

- Our company provides two installation methods: upright and C-shaped table clamps. C-shaped table clamps are only suitable for light-torque screwdrivers. For high-torque screwdrivers, it is recommended to stand upright. The "base" of the torque arm frame is directly locked and fixed to a firm On the work table.
- Desktop C-clamp for torsion arm stand, suitable for the following series:
- A300, A600, R350, R650, A300S, A600S

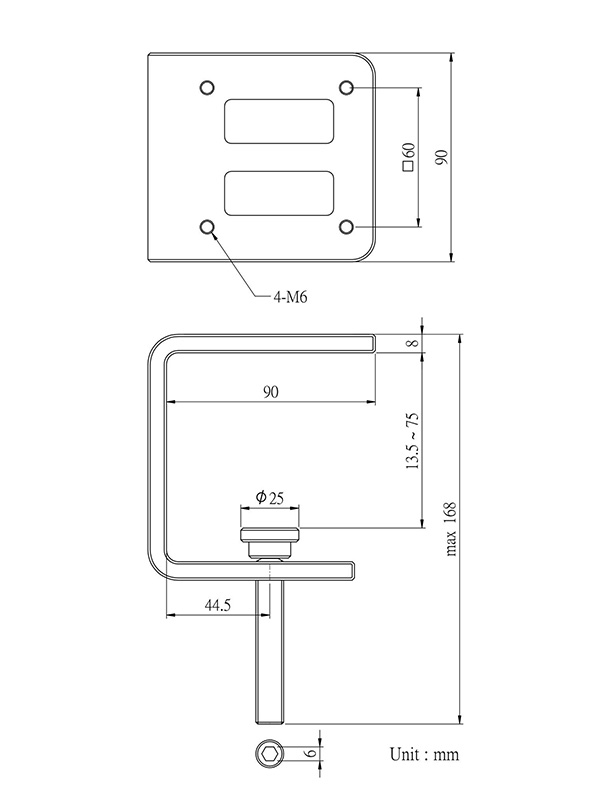

- Minimum clamp thickness: 13.5mm
- Maximum clamp thickness: 75mm
- Appearance size: D90×W98(top) 89(bottom)×H106×T8
- Screwdriving.
- Drilling and Tapping.
- Automatic Screw Feeding.
- Impact Wrenches.
- Impact Tools.
- Pulse Tools.
