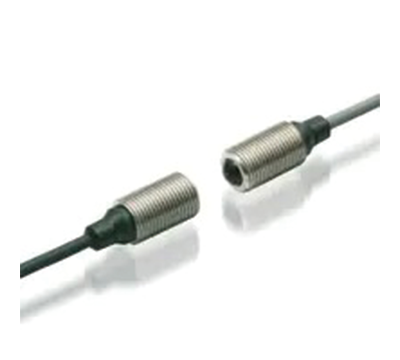

Transmissive Sensor Head

Model

PX-H72^*1

Type

M12 Thrubeam Standard

Light source LED

Infrared LED
(Wavelength：870 nm)

Detecting distance

TURBO

10 m 32.8'

SUPER

15 m 49.2'

ULTRA

30 m 98.4'

MEGA

40 m 131.2'

Detectable object

ø7.5 mm ø0.30"
Opaque materials

Spot diameter

―

Environmental resistance

Enclosure rating

IEC: IP68/JEM: IP68g/NEMA: 4X, 6P, 13/DIN: IP69K

Ambient light

Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max.

Ambient temperature

-10 to +55 °C 14 to 131 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Case material

Housing ：SUS303 (Plastic parts：PMP, POM) Lens ：BK7

Accessories

Screw nut (SUS303) x 4, toothed washer (SUS304) x 2

Weight

Approx. 90 g (Including cable)
