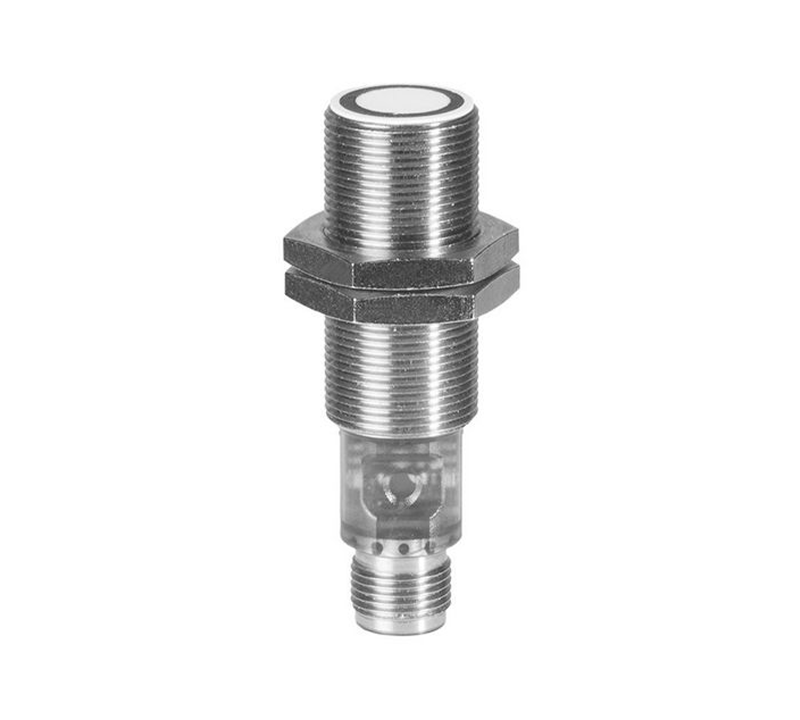

Ultrasonic distance measuring sensors Baumer R18.DA0-UA1B.7BO
| General Data |
| Scanning range sd |
100 ... 1000 mm |
| Scanning range close limit Sdc |
100 ... 1000 mm |
| Scanning range far limit Sde |
100 ... 1000 mm |
| Repeat accuracy |
< 0,5 mm |
| Resolution |
< 0,3 mm |
| Response time ton |
< 80 ms |
| Release time toff |
< 80 ms |
| Temperature drift |
< 2 % of distance to target So |
| Power-up drift |
Compensated after 10 min. |
| Sonic frequency |
220 kHz |
| Adjustment |
qTeach |
| Alignment aid |
Light indicator flashing |
| Light indicator |
LED yellow |
| Power on indication |
LED green |
| Alignment measuring axis |
< 2° |
| Electrical Data |
| Voltage supply range +Vs |
12 ... 30 VDC |
| Current consumption typ. |
38 mA |
| Output circuit |
Voltage output |
| Output signal |
0 ... 10 V / 10 ... 0 V |
| Residual ripple |
< 10 % Vs |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes, Vs to GND |
| Mechanical Data |
| Type |
Cylindrical threaded |
| Housing material |
Brass nickel plated / TR90 |
| Width / Diameter |
18 mm |
| Height / Length |
64 mm |
| Connection types |
Connector M12 |
