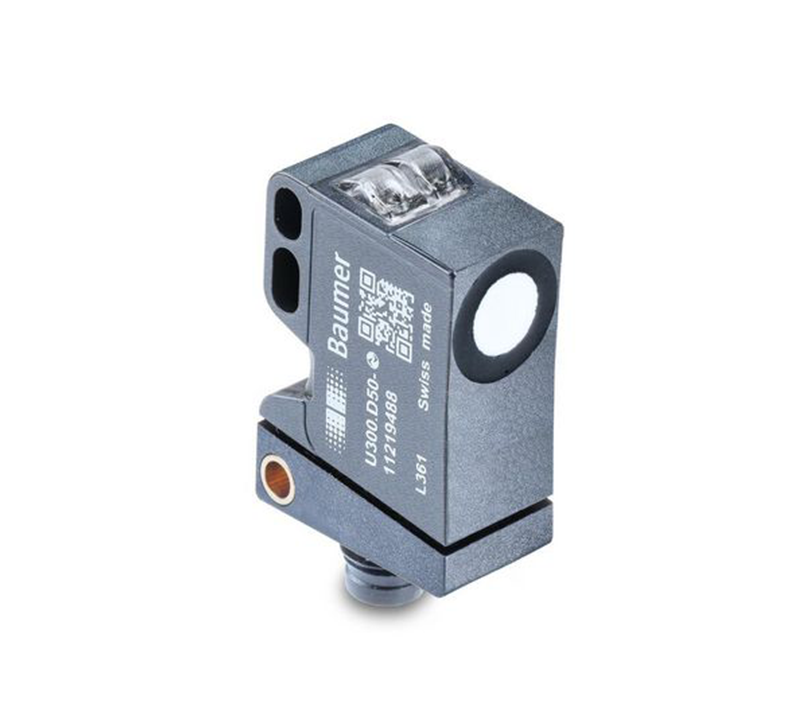

Sensor
| General Data | |
|---|---|
| scanning range Sd | 15 ... 500 mm |
| scanning range close limit Sdc | 15 ... 500 mm |
| scanning range far limit Sde | 15 ... 500 mm |
| version | IO-Link dual channel |
| hysteresis typ. | 4% Sde |
| repeat accuracy | < 0.5 mm |
| resolution | < 0.3 mm |
| response time ton/toff standard | < 40 ms |
| response time ton/toff min | < 16 ms |
| temperature drift | < 2% of distance to target So |
| power-up drift | compensated after 15 min. |
| sonic frequency | 290 kHz |
| adjustment | qTeach, line-Teach, IO-Link |
| alignment aid | light indicator flashing |
| light indicator | LED yellow |
| power on indication | LED green |
| alignment measuring axis | < 2° |
| Electrical Data | |
| voltage supply range +Vs | 12 ... 30 VDC |
| current consumption typ. | 35 mA |
| output circuit | voltage output |
| output signal | 0 ... 10 V / 10 ... 0 V |
| output current | < 100 mA |
| voltage drop Vd | < 3 VDC |
| residual ripple | < 10 % Vs |
| short circuit protection | yes |
| reverse polarity protection | yes, Vs to GND |
| Communication Interface | |
| interface | IO-Link V1.1 |
| baud rate | 38.4 kBaud (COM 2) |
| cycle time | ≥ 8 ms |
| process data length | 32 Bit |
| process data structure | Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality, Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement |
| IO-Link port type | Class A |
| additional data | distance, excess gain operating cycles operating hours boot cycles operating voltage device temperature histograms |
| adjustable parameters | switching point switching hysteresis measured value filtering time filters LED status indicators output logic output circuit counter beam forming analog output characteristic deactivate the sensor element Find Me function |
| IO-Link | yes |
